Product Overview
Standard wall wart style camera power supplies are fine for small jobs, but when it comes to larger surveillance installations with multiple cameras, a rack mounted power supply is a cleaner, more efficient, and more flexible way to manage all that wiring. This 12VDC model is the perfect complement to our DVRs/NVRs. Plus, included screw-terminal connectors make for easier installation and quick trouble-shooting, and self-resetting PTC fuses help protect your power supply and prevent service calls.
WattBox® Rack Mount Power Supply - 12 VDC
Standard wall wart style camera power supplies are fine for small jobs, but when it comes to larger surveillance installations with multiple cameras, a rack mounted power supply is a cleaner, more efficient, and more flexible way to manage all that wiring. This 12VDC model is the perfect complement to our DVRs/NVRs. Plus, included screw-terminal connectors make for easier installation and quick trouble-shooting, and self-resetting PTC fuses help protect your power supply and prevent service calls.
12VDC Total Power
Each output is rated up to 1A with a total power supply current draw of 10A for the 9-output model and 20A for the 18-output model. That's enough juice to power more than a dozen cameras and accessories.
Easy Connection

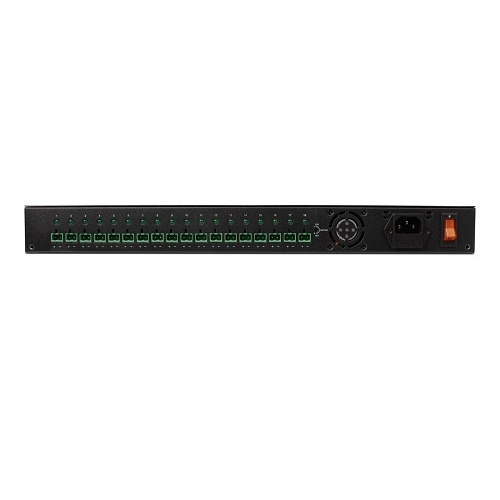

This WattBox's provided screw-terminal connectors make connecting your cameras quick and painless. Need to troubleshoot? Simply unplug. Doesn't get much easier than that.

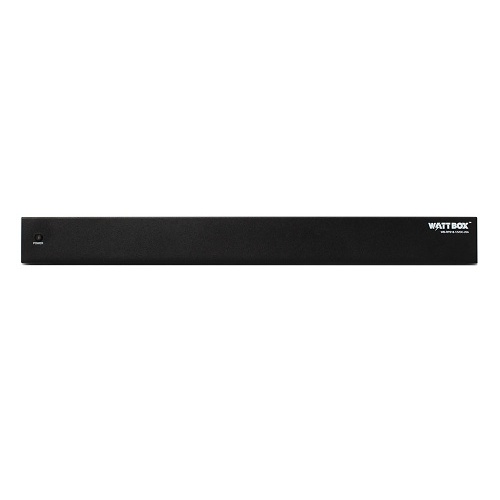

LED Power Status
An LED indicator on each output confirms if power is being applied. If a fuse is open or there is a fault condition, the LED will turn off.
Neat, Clean Install
Finding a place for all those wall warts is a pain in the neck. So we've given you all the power you need, plus included mounting ears to provide versatility. Whether it's front of rack, back of rack, ceiling or wall-mount, this box goes where you need it.
Self-Resetting Fuses
Each output features a PTC fuse that never blows and never needs to be replaced. If too much current is drawn, the fuse will heat up and automatically open the circuit. Once the problem is resolved, the fuse will cool and reset the connection. Simple, yet very effective.
General Information
Specifications
ADI Part Number WT-WBRPS1812 Brand Name WattBox Manufacturer Part Number WB-RPS18-12VDC-20A
