Product Overview
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Unmanaged Gigabit PoE+ Switches. These gigabit PoE+ switches deliver up to 30W per port of PoE power, and data over your existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both power and data.The new fanless design reduces unnecessary energy consumption and eliminates disruptive operating noise. Easily connect and network your PoE and PoE+ devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls, to reliable TRENDnet's gigabit PoE+ switches. PoE+Features a 120W total PoE power budget, and supplies 16 Power over Ethernet devices with up to 30W per port Gigabit Ports With high-speed gigabit ports and a full switching capacity, these switches are well-suited for the most demanding network applications. FanlessFanless PoE+ switch design lowers unnecessary energy consumption and eliminates disruptive operating noiseNDAA / TAA compliant (U.S. and Canada only) More from the Manufacturer
General Information

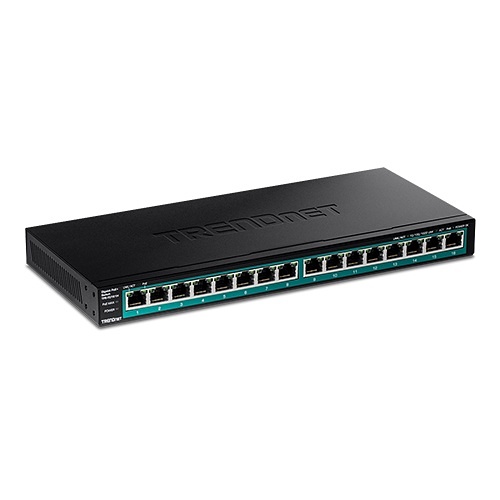

Name : TRENDnet TPE-TG161H 16-Port Gigabit PoE+ Switch , TRENDnet
Category : Network Switches
UPC Code : 710931162363
Country of Origin : Taiwan, Province of China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TQ-TPETG161H
Brand Name : TRENDnet
Manufacturer : TRENDnet
Manufacturer Part Number : TPE-TG161H
NDAA Compliant : Yes
Packaged Quantity : 5
Product Model : TPE-TG161H
Product Name : 16-Port Gigabit PoE+ Switch
Product Type : Ethernet Switch
Weight (Approximate) (g) : 11950
Technical Information
Media Type Supported : Twisted Pair
Power Consumption : 12.80W
Interfaces/Ports
Network (RJ-45) : Yes
Port/Expansion Slot Details : 16 x Gigabit Ethernet PoE+
Total Number of Network Ports : 16
Management & Protocols
Manageable : No
Media & Performance
Network Technology : 10/100/1000Base-T
Network & Communication
Ethernet Technology : 10 Gigabit Ethernet
Layer Supported : 2
Networking Standards : IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Physical Characteristics
Compatible Rack Unit : 1U
Depth : 13.4"
Form Factor : Rack Mount, Wall Mount
Height : 13"
Height (mm) : 330
Weight (Approximate) : 26.35 lb
Width : 13.8"
Width (mm) : 350
Power Description
Frequency : 50 Hz, 60 Hz
Frequency (Hz) : 50, 60
PoE (RJ-45) Port : Yes
PoE Budget : 120W
PoE Budget (W) : 120
Power Consumption (W) : 12.800
Power Source : Power Supply
Warranty
Limited Warranty : Lifetime
Miscellaneous
Country of Origin : TW
Package Contents : 16-Port Gigabit PoE+ Switch Quick Installation Guide Rack Mount Kit Power Brick (55V, 2.55A) Power Cord (1.5m / 4.9 ft.)
TAA Compliant : Yes
