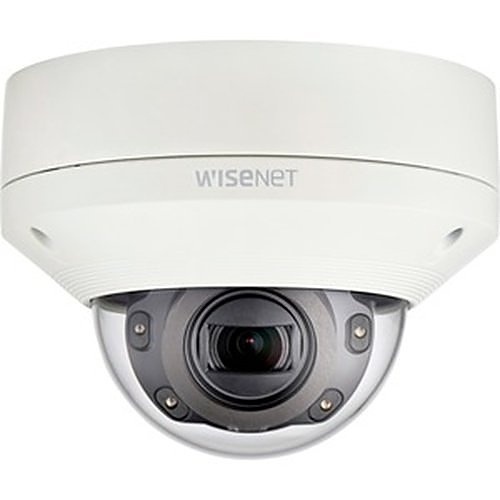

Hanwha XNV-L6080R X-Series 2MP Outdoor IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory
XNV-L6080R|SQ-XNVL6080R
Hanwha XNV-L6080R X-Series 2MP Outdoor IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory
XNV-L6080R|SQ-XNVL6080R
Hanwha Vision
Hanwha XNV-L6080R X-Series 2MP Outdoor IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory
XNV-L6080R | SQ-XNVL6080R
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
X series features the most powerful chipset ever incorporated into a full camera range. Hanwha’s self-developed 5 chip uses an all-new architecture that enables faster processing. This means the highest quality video performance with essential features suited to a wide range of video surveillance applications.
Main Features
General Information
Name:Hanwha XNV-L6080R X-Series 2MP Outdoor IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory
Category:Hanwha Vision, Video Surveillance, IP Cameras, Wireless Cameras, Dome Cameras, ADI Pro Rewards
UPC Code:8801089133014
Country of Origin:Korea, Republic of. Country of origin is subject to change.
Specifications
ADI Part Number SQ-XNVL6080R Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNV-L6080R Product Model XNV-L6080R Product Name 2MP IR Outdoor Dome Product Series X Product Type Dome Camera
Effective Camera Resolution 2.16MP Field of View H: 109.0°-33.2°, V: 57.4°-18.7°, D: 132.0°-38.0° Lens Type DC Auto Iris Maximum Aperture F1.6 Maximum Frame Rate 60fps Minimum Focal Length 3.2mm Night Vision Yes Night Vision Type Infrared Optical Zoom 3.1x Video Formats H.264, H.265, MJPEG, MPEG-4
Connectivity Technology Wired Image Sensor Type CMOS Night Vision Distance 98.43 ft Wide Dynamic Range Yes
Ingress Protection Rating IP66 NDAA Compliant Yes
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity 90% RH
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.03 lux Shortest Shutter Speed 2 Second
Network (RJ-45) Yes
Focal Length 3.2-10mm Maximum Focal Length 10mm Minimum Aperture f/2.9
Remote Management Yes
Color Ivory Durability Dustproof, Impact Resistant, Waterproof Form Factor Dome Height 4.7" Weight 2.86lb
Diameter 6.3" Mount Type Bracket Mount, Ceiling Mount, Pole Mount, Wall Mount
Recording Formats HD
Country of Origin KR Impact Protection Rating IK10 Indoor/Outdoor Outdoor
