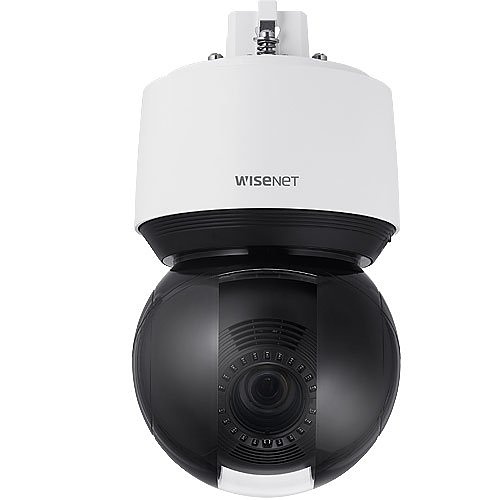

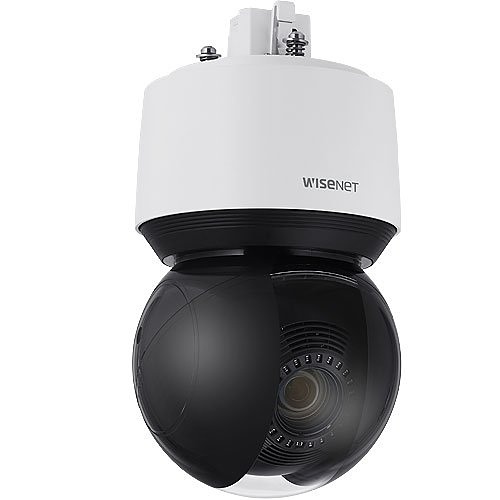

Hanwha QNP-6320R Q Series 2MP IR PTZ IP Camera, 4.44-142.6mm Varifocal Lens, 32x Optical Zoom, IP66, IK10
Hanwha QNP-6320R Q Series 2MP IR PTZ IP Camera, 4.44-142.6mm Varifocal Lens, 32x Optical Zoom, IP66, IK10
Aperçu
New Q series PTZ reduced the weight by up to 55% for the Dome type and the size became more compact than conventional PTZ cameras. More compact and lighter design significantly reduce the burden of installation. Moreover, the lightened head increased the speed of Pan/Tilt.
New Q series PTZ supports delicate and precise PTZ control. Conventional PTZ cameras had challenges in offering precise monitoring of moving objects due to its pre-set centered movement. New Q series PTZ provides stable object monitoring using precise PTZ control when a user wants to track moving objects manually. QNP-6320R offers 110º (-20º ~ 90º) of Tilt angle, enabling effective monitoring of objects positioned above the camera level and objects in sloped environment.
Principales caractéristiques
Renseignements généraux
Spécifications
ADI Numéro du produit SQ-QNP6320R Code fabricant QNP-6320R Fabricant Hanwha Vision Marque Hanwha Vision Modèle de produit QNP-6320R Nom de produit 2MP IR 32x PTZ Série de produit Q Type de produit Network Camera
Champ de Vision H: 64.66°-2.29°, V: 38.08°-1.30° Focale minimale 4.44mm Formats d'enregistrement vidéo H.264, H.265, MJPEG Nombre d'images par seconde 60fps Ouverture maximale f/1.6 Résolution effective de l'appareil photo 2MP Type de lentille Varifocal Type de vision nocturne Infrared vision nocturne Yes Zoom optique 32x
Distance de vision nocturne 328.08 ft, Yes Technologie de connecttivité Wired Type du capteur d'images CMOS
Indice de protection IP66 NDAA Compliant Yes
Résolution maximale vidéo 1920 x 1080
Humidité Active 0-95% RH (Non-condensing) Temperature Maximale d'Opération 131°F Temperature Minimale d'Opération -31°F
Eclairage minimum 0.005 lux Vitesse d'obturation maximum 2 Second Vitesse d'obturation minimum 1/12,000 Second
Réseau (RJ-45) Yes
Focale maximale 142.6 mm Longueur de la focale (équivalent 35mm) 4.44-142.6 mm Objectif inclus Yes Ouverture Minimum f/4.4
Gestion à distance Yes
Couleur Bleu, White Durabilité Dustproof, Impact Resistant, Waterproof Facteur de forme PTZ Poids 6.83lb
Diamètre 6.22" Type de montage Box Mount, Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Swan Neck Mount, Wall Mount
Formats d'enregistrement Full HD Type de stockage Memory Card
Caractéristiques , , , NEMA4X, 4.44-142.6mm (32x) lens, Day and Night (ICR), WDR, DIS (Built-in gyro sensor), H.264, H.265, MJPEG codec, WiseStreamII, Intelligent Analytics, Max. 2MP resolution, Max. IR viewable length 100m (328.08ft), Micro SD/SDHC/SDXC 1slot 256GB Pays d'origine VN Protecction contre les chocs IK10
