Panduit
Panduit CCSSQD2834-X Cable Cleat, Quad Configuration
CCSSQD2834-X | P9-SSQD2834X
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

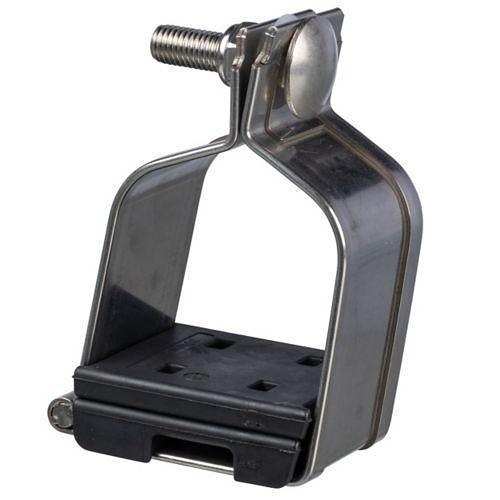

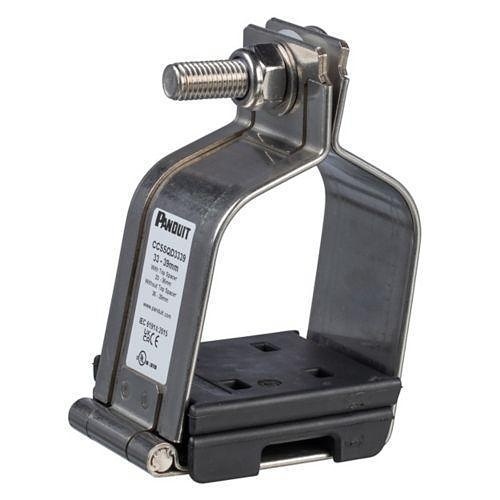

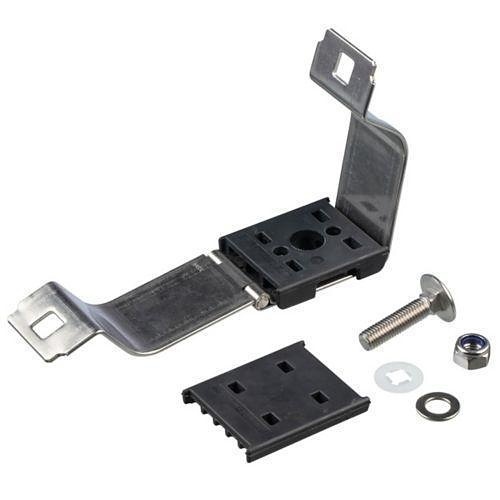

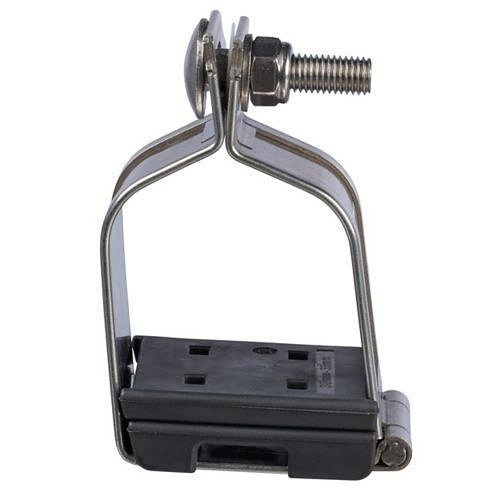

The CCSSQD2834-X Stainless Steel Quadrafoil Cable Cleat offers protection against extreme environments and high short circuit current faults. The cable cleat is certified to IEC 61914, tested up to 169 kA peak fault current, and retains cables in the event of a short circuit fault. Compatible with cable diameter of 28-34mm and installs using a separately sold mounting bracket or direct to the cable tray rung via fixing hole and user-supplied M8 bolt. Features 316L stainless steel and removable spacer.
General Information
Name:Panduit CCSSQD2834-X Cable Cleat, Quad Configuration
Category:Panduit, Data Comm & Networking, Cable Management, Cable Clamps
UPC Code:
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number P9-SSQD2834X Brand Name Panduit Manufacturer Part Number CCSSQD2834-X
Material Stainless Steel
Indoor/Outdoor Indoor, Outdoor
