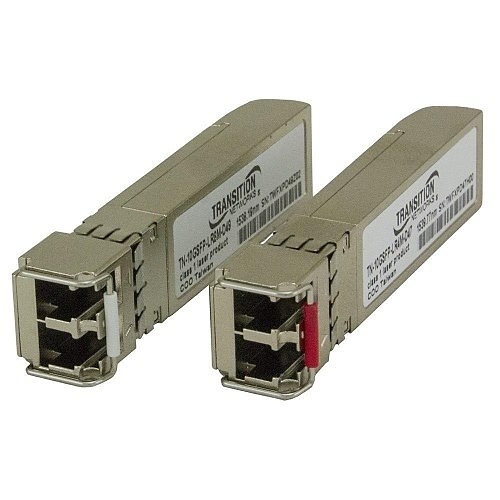

Lantronix TN-10GSFP-LR4M-D36 SFP Module Transceiver SFP+ 1000BASE-LX/10GBASE-ER, 1G/1

Brand: Lantronix
ADI #:P6-GFPLRM36 Model #: TN-10GSFP-LR4M-D36  Name: Lantronix TN-10GSFP-LR4M-D36 SFP Module Transceiver SFP+ 1000BASE-LX/10GBASE-ER, 1G/1
  • SFP+ Optical Transceiver with duplex LC connector
  • 1G/10G Small Form-Factor Pluggable (SFP+) MSA compliant
  • Compliant with 10GBase-ER/ZR
Lantronix TN-10GSFP-LR4M-D36 SFP Module Transceiver SFP+ 1000BASE-LX/10GBASE-ER, 1G/1

Product Overview

10G Base-ER/1000Base-LX, SFP+ with DMI single mode (LC) 1548.51nm 193.60 THz [40km/24.9mi]. Link Budget 15.0 dB.

General Information

Name : Lantronix TN-10GSFP-LR4M-D36 SFP Module Transceiver SFP+ 1000BASE-LX/10GBASE-ER, 1G/1 , Lantronix
Category : SFP Modules
UPC Code : 783384252073

Specifications

General Information

ADI Part Number : P6-GFPLRM36
Brand Name : Lantronix
Manufacturer : Lantronix, Inc
Manufacturer Part Number : TN10GSFPLR4MD36
Product Model : TN-10GSFP-LR4M-D
Product Name : TN-10GSFP-LRxM-Dxx SFP+ Module
Product Series : TN-10GSFP-LRxM-Dxx
Product Type : SFP+

Technical Information

Media Type Supported : Optical Fiber

Interfaces/Ports

Total Number of Ports : 1

Media & Performance

Fiber Mode Supported : Single-mode
Fiber Optic Cable Standard : 1548.51 nm
Maximum Distance Supported : 131233.60', 131233.60 ft
Network Technology : 1000Base-LX, 10GBase-DWDM, 10GBase-ER

Network & Communication

Ethernet Technology : 10 Gigabit Ethernet

Physical Characteristics

Depth : 2.2"
Form Factor : Plug-in Module
Height : 0.3"
Height (mm) : 8.382
Width : 0.5"
Width (mm) : 13.208

Power Description

Input Voltage : 3.3 V

Warranty

Limited Warranty : Lifetime

Miscellaneous

Compatibility : MSA Compliant
Country of Origin : TW
Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
TAA Compliant : Yes
