Macurco 70-2900-0700-1 2-Relay Gas Boiler Controller, 24VAC/VDC
70-2900-0700-1|MA-GBC242
Macurco 70-2900-0700-1 2-Relay Gas Boiler Controller, 24VAC/VDC
70-2900-0700-1|MA-GBC242
Macurco 70-2900-0700-1 2-Relay Gas Boiler Controller, 24VAC/VDC
70-2900-0700-1 | MA-GBC242
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

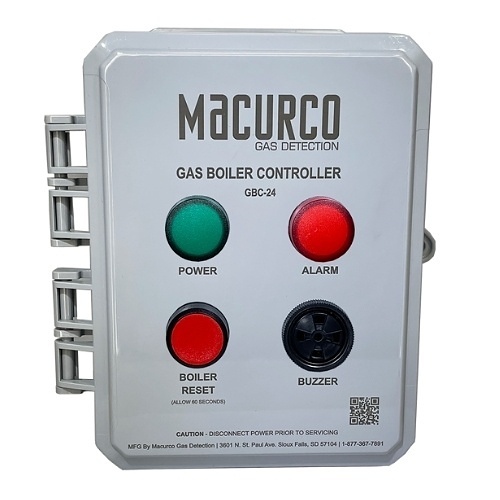

The Gas Boiler Controller (GBC) used in conjunction with Macurco Gas detectors is used to shut down boilers in the presence of gas. Using a single detector or up to four gas detectors the controller can control up to 8 dry contact outputs. These outputs are designed to shut down the boiler system upon the detection of carbon monoxide and/or combustible gases such as natural gas or propane. If the detectors are programmed in latching mode then utilizing the Gas Boiler Controller you can reset the power to disengage the latched relay. The Gas Boiler Controller has a green power light, a red alarm light, a boiler reset button, and an audible buzzer.
Main Features
General Information
Name:Macurco 70-2900-0700-1 2-Relay Gas Boiler Controller, 24VAC/VDC
Category:Macurco, Fire, Fire Detection Devices & Accessories, Gas Detectors Non-CO
UPC Code:857560007211
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number MA-GBC242 Manufacturer Part Number 70-2900-0700-1
Limited Warranty 2-Year
Features 24V DC Driver - Integrated 24V DC driver for horn/strobe, enhancing notification of gas presence to ensure quick action, Audible Notification - Built-in Audible Buzzer alerts users to alarms, promoting immediate attention to potential gas hazards, Customizable Relays - Customize up to 8 10A SPDT Relays (sets of 2) for tailored functionality to meet specific operational needs, Durable Housing - Opaque Polycarbonate, NEMA 4X/6P (IP66/68) enclosure protects against harsh environments, ensuring longevity and reliability, Expandable System - Customize up to 4 expansion relay boards, providing flexibility in setup and increased capability, Multi-Detector Support - Output power supports up to 4 detectors, allowing for comprehensive monitoring across larger facilities, Shutdown Control - Shutdown up to 8 boilers individually via expansion relays, ensuring immediate response to hazardous conditions, Voltage Options - Available in both 24V or 120V options to suit various installation scenarios
