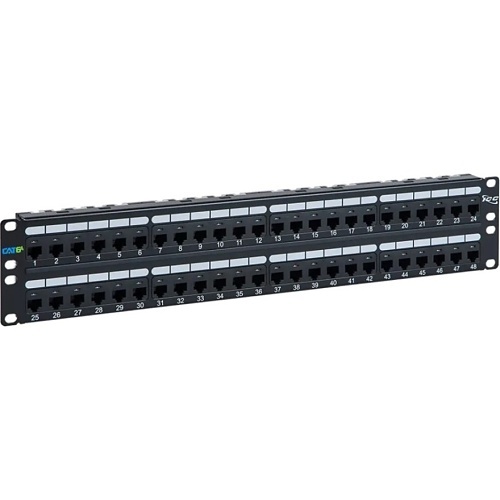

Image of H2-MPP0486B
Shop all ICC

ICC ICMPP0486B AT6A UTP 48-Port Patch Panel in 110 Type, 2U RMS

ICMPP0486B|H2-MPP0486B
Shop all ICC

ICC ICMPP0486B AT6A UTP 48-Port Patch Panel in 110 Type, 2U RMS

ICMPP0486B|H2-MPP0486B

Sign In for Dealer Pricing

Become an ADI Customer
Image of H2-MPP0486B
ICC

ICC ICMPP0486B AT6A UTP 48-Port Patch Panel in 110 Type, 2U RMS

ICMPP0486B | H2-MPP0486B

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

ICC's Category 6A 2U 48-port, 110-type UTP, 10G Patch Panel is component compliant to ANSI/TIA Category 6A connecting hardware requirements. The vertical 110-type insulation displacement connectors (IDCs) are designed to provide optimum permanent and channel link performance and reduce potential Alien Crosstalk (AXT). Jacks are grouped in six-port modules for quick administration and easy labeling. The high-density design occupies 2 rack mount space (RMS) and measures 19" x 3.50".

Main Features

  • HIGH-PERFORMANCE CONNECTIVITY: Rack-mounted CAT6A component-rated fixed patch panel made with 16-gauge cold-rolled steel (16 GA CRS), delivering excellent performance for data networks requiring maximum speed and bandwidth. Backwards compatible with Cat6 and Cat5e cabling
  • FUTURE-PROOF AND RELIABLE: Designed for 10 Gigabit Ethernet, ensuring your network is future-proof. Ideal for 10 Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE++) up to 100W
  • EFFICIENT INSTALLATION AND QUICK REFERENCE: Featuring 110 IDC connections on the rear, this design reduces termination time and allows for re-termination over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference. It fits standard 19" EIA rack mount width with a 1U (1.75") standard height
  • DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance
  • ENHANCED CROSSTALK CANCELLATION: The 110-Type IDC connections on the rear are positioned vertically to effectively reduce potential alien crosstalk. This design is engineered to exceed ANSI/TIA-568 Category 6A connecting hardware requirements, providing enhanced crosstalk cancellation, reducing return loss, and improving overall network performance

    • General Information

    Name:ICC ICMPP0486B AT6A UTP 48-Port Patch Panel in 110 Type, 2U RMS
    Category:ICC, Data Comm & Networking, Patch Panels, Network Patch Panels
    UPC Code:633758092234
    Country of Origin:Taiwan, Province of China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
    Installation Instructions
