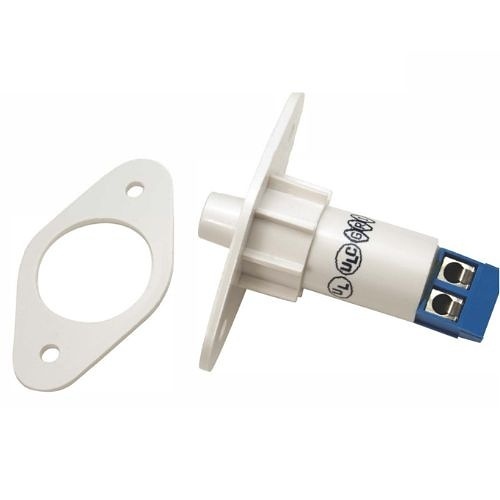

GRI PBF100TH/1K Flanged Push Button Switch with 1K Resistor, White
GRI PBF100TH/1K Flanged Push Button Switch with 1K Resistor, White
GRI PBF100TH/1K Flanged Push Button Switch with 1K Resistor, White
PBF100TH/1K | GI-PBF100TW1
Please sign in to view pricing and availability and to add to cart.
Product Overview
The Push Button or Plunger actuated PB series was developed in response to installer request for a direct replacement of an existing and problematic mechanical type contact. The PBF-Flanged Push Button can be installed without re-drilling or redesigning the original installation. The sealed contacts of the reed switch insure a long service life.
Plunger actuated reed switches have also become so popular on new installations that many variations are now being produced. The PB-100 is a press fit design and eliminates the screw mounted flange. A terminal connection is offered on most models and this option can be added by including a "T" at the end of the part number, PB-100T. Mounting hardware is also included where applicable.
Main Features
General Information
Specifications
ADI Part Number GI-PBF100TW1 Brand Name GRI Manufacturer George Risk Industries Manufacturer Part Number GI-PBF100TWW1K Product Model PBF100TH/1K Product Name PBF100TH/1K Plunger Switch Product Series PBF Product Type Plunger Switch
Contact Form Form A Standard Gap 1.5"
Color White
Contact Type Closed Loop, N.O. Diameter 0.8" Installation Type Hybrid
Limited Warranty Lifetime
Additional Information 3/4" x 1 1/2" With Screw Down Flange 12" #22AWG Leads or Screw Terminals Hermetically Sealed Plated Contacts Resist Sticking or Freezing Longer Leads, Zip Cord or Jacketed Cable Upon Request Built-in E.O.L Resistors and Diodes Upon Request Certifications & Standards UL ULC Country of Origin US Features End of Line (EOL) Resistor Package Contents PBF100TH/1K Plunger Switch Mounting Hardware Spacers
