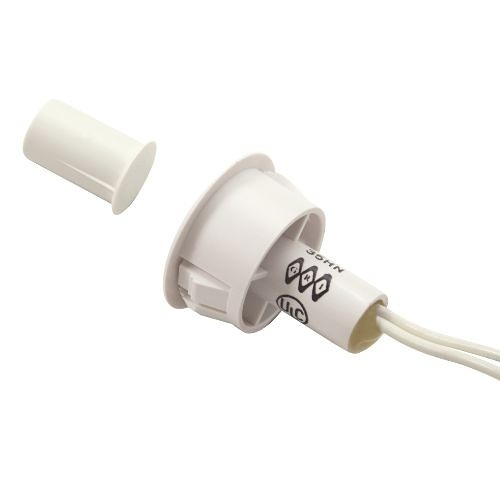

GRI 130T-12-W 120T Series 3/4" Switch 3/8" Magnet Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, Open, N/C, B, White
GRI 130T-12-W 120T Series 3/4" Switch 3/8" Magnet Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, Open, N/C, B, White
GRI 130T-12-W 120T Series 3/4" Switch 3/8" Magnet Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, Open, N/C, B, White
130T-12-W | GI-130T12W
Please sign in to view pricing and availability and to add to cart.
Product Overview
The 120T/4473 requires that a 3/4" hole be drilled for the switch and 3/8" hole for the magnet. The 3/4" switch mounting is desirable since the extra wire and connections can be more easily inserted into the larger hole for concealment. Also, should the need arise for testing or replacement, it would be easy to pull the switch, extend the extra wire and access the original connections.
Installation is further enhanced by using a smaller 3/8" diameter magnet to avoid the need to center a larger hole in a 1" to 1 1/2" thick door or window. This will allow you to offset the magnet should it be required.
The 120T/4473 switch set was developed for and should only be used in openings with wooden or aluminum frames.
Main Features
General Information
Specifications
ADI Part Number GI-130T12W Brand Name GRI Manufacturer George Risk Industries Manufacturer Part Number 130T-12-W Product Model 130T-12-W Product Name 130T-12-W Magnetic Contact Product Series 130 Product Type Magnetic Contact
Contact Form Form B Standard Gap 0.5"
Connectivity Technology Wired
Color White
Input Voltage 175V DC Power Source DC
Contact Type Closed Loop, N.C., Open Loop Diameter 0.4" Installation Type Hybrid
Limited Warranty Lifetime
Additional Information - Press To Fit
- Also Available in Stubby Version
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
Country of Origin US Features End of Line (EOL) Resistor
