Product Overview

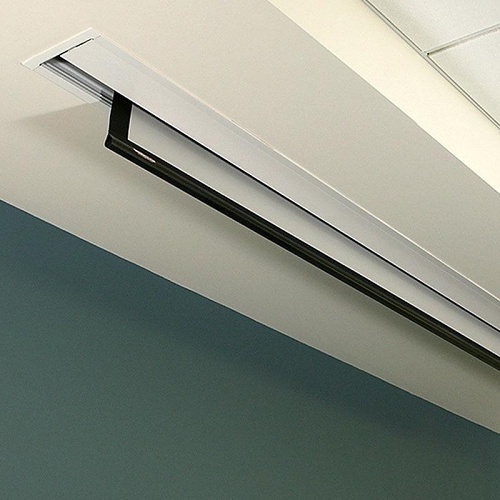

The Access E Electric Projection Screen offers a ceiling-recessed design for concealed installations, perfect for classrooms and boardrooms.

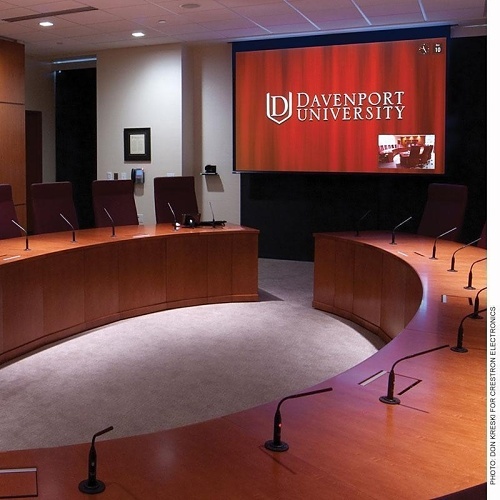

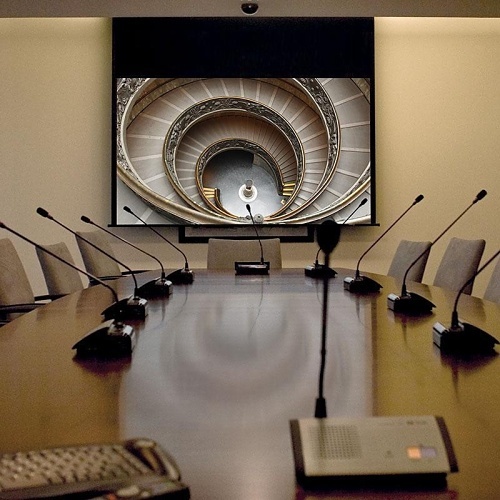

The ceiling-recessed Access E projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. Case includes a bottom access panel door for easy service and maintenance.

Main Features

  • Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 16' (488 cm) wide, depending on surface selection.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.
  • Sliding brackets on top of the case allow for adjustments when mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom access panel door is detachable for easy service or maintenance.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • Low voltage, video interface or other controls can be built into housing for access from below ceiling.

    • General Information

    Name:Draper 139112 Access E, 133, HDTV, Matte White
    Category:Draper, Pro AV, Pro Projectors & Accessories, Pro Projector Screens
    UPC Code:
    Country of Origin:United States. Country of origin is subject to change.
