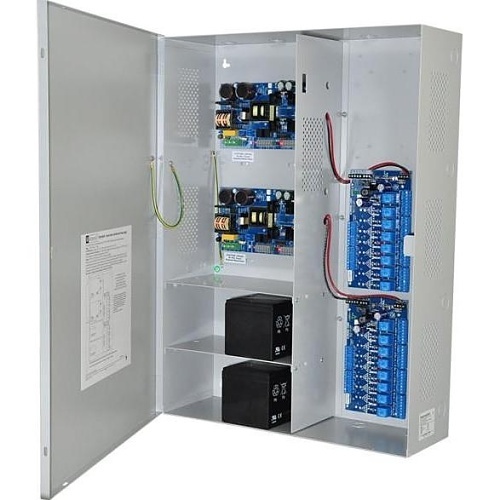

Altronix MAXIMAL55FDV Access Power Controller with Power Supply / Chargers, 16 PTC Class 2 Relay Outputs, Dual 12VDC P/S at 9.5A Each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
MAXIMAL55FDV|AX-MAXIM5FDV
Altronix MAXIMAL55FDV Access Power Controller with Power Supply / Chargers, 16 PTC Class 2 Relay Outputs, Dual 12VDC P/S at 9.5A Each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
MAXIMAL55FDV|AX-MAXIM5FDV
Altronix
Altronix MAXIMAL55FDV Access Power Controller with Power Supply / Chargers, 16 PTC Class 2 Relay Outputs, Dual 12VDC P/S at 9.5A Each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
MAXIMAL55FDV | AX-MAXIM5FDV
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the Altronix MAXIMAL55FDV Access Power Controller, designed to efficiently manage and distribute power to your access control systems and accessories. This robust unit transforms a 220V AC input into sixteen independently controlled 12V DC outputs, each protected by PTC. It seamlessly integrates with various access control devices, including mag locks and electric strikes, and supports both fail-safe and fail-secure modes. The FACP Interface allows for emergency egress and alarm monitoring, ensuring safety and reliability. With selectable fire alarm disconnect features, this controller is a must-have for any security setup. Enhance your security system today with the Altronix MAXIMAL55FDV! Order now!
Main Features
General Information
Name:Altronix MAXIMAL55FDV Access Power Controller with Power Supply / Chargers, 16 PTC Class 2 Relay Outputs, Dual 12VDC P/S at 9.5A Each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
Category:Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code:
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number AX-MAXIM5FDV Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number MAXIMAL55FDV Product Line Maximal Product Model MAXIMAL55FDV Product Name Access Power Controller With Power Supply/Chargers, 16 PTC Class 2 Relay Outputs, Dual 12VDC P/S at 9.5A each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure Product Type Access Power Controller Sector Access Control
Number of Doors 16 Output Voltage 12V DC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
Depth 6.25" Height 26" Weight 33.4lb Width 19"
Input Voltage 220V AC
Limited Warranty Lifetime
Environmental Certification RoHS Features AC fail supervision (form "C" contacts), Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC), Capacity 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure), Failover Upon AC loss, instantaneous, Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs, Low battery and battery presence supervision (form "C" contact), Normally open (NO) or normally closed (NC) dry contact input, Notification trigger is selectable for 30 seconds (factory set) or 2 hours, Polarity reversal input from FACP signaling circuit, Type Sealed lead acid or gel type Indoor/Outdoor Indoor
