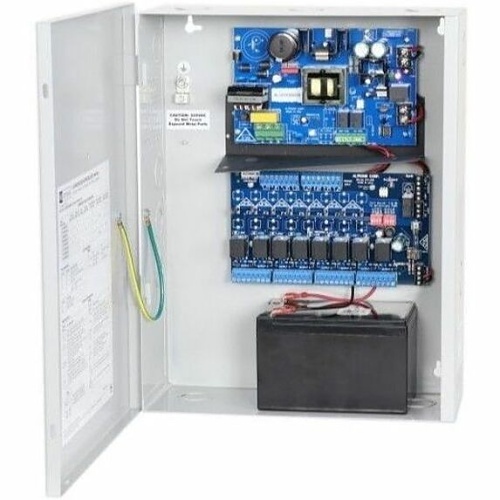

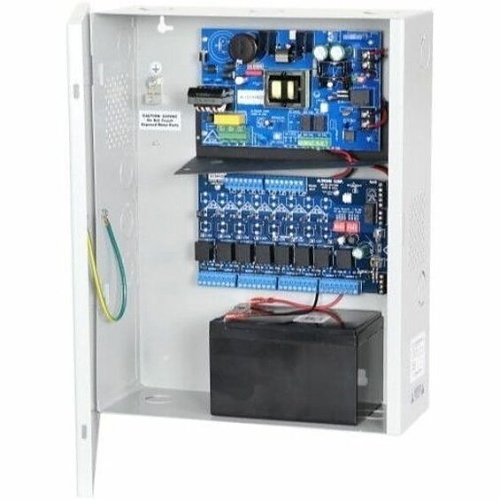

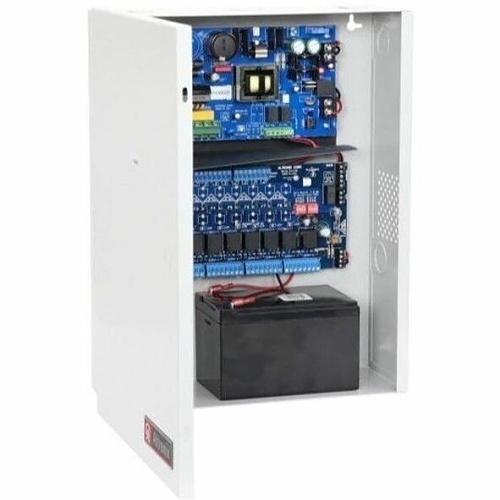

Image of AX-1012ACMC2
Shop all Altronix

Altronix AL1012ACMCB220 Access Power Controller, 10A 12V DC P/S with ACM8CB, 220V

AL1012ACMCB220|AX-1012ACMC2
Shop all Altronix

Altronix AL1012ACMCB220 Access Power Controller, 10A 12V DC P/S with ACM8CB, 220V

AL1012ACMCB220|AX-1012ACMC2

Sign In for Dealer Pricing

Become an ADI Customer
Image of AX-1012ACMC2
Altronix

Altronix AL1012ACMCB220 Access Power Controller, 10A 12V DC P/S with ACM8CB, 220V

AL1012ACMCB220 | AX-1012ACMC2

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Introducing the Altronix AL1012ACMCB220 Access Power Controller, a versatile solution for your access control needs. This unit efficiently transforms a 220VAC input into eight independently managed 12VDC outputs, delivering a robust 10 amp continuous supply current. Designed for seamless integration with various access control devices such as Mag Locks and Electric Strikes, it supports both Fail-Safe and Fail-Secure modes. The FACP Interface enhances safety with Emergency Egress and Alarm Monitoring capabilities. With options for single or dual power sources, this controller is perfect for any security setup. Elevate your security system today with the Altronix AL1012ACMCB220!

Main Features

  • Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input. b) Polarity reversal input from FACP signaling circuit.
  • Visual Indicators: Red LEDs indicate outputs are triggered (relays energized) Green LED indicates FACP disconnect is triggered AC input and DC output LED indicators.
  • Battery Backup: Built-in charger for sealed lead acid or gel type batteries Maximum charge current 0.7 A Automatic switch over to stand-by battery when AC fails Zero voltage drop when unit switches over to battery backup (AC failure condition) Battery fail and battery presence supervision (formin.C" contact).

    • General Information

    Name:Altronix AL1012ACMCB220 Access Power Controller, 10A 12V DC P/S with ACM8CB, 220V
    Category:Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
    UPC Code:782239945887
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
