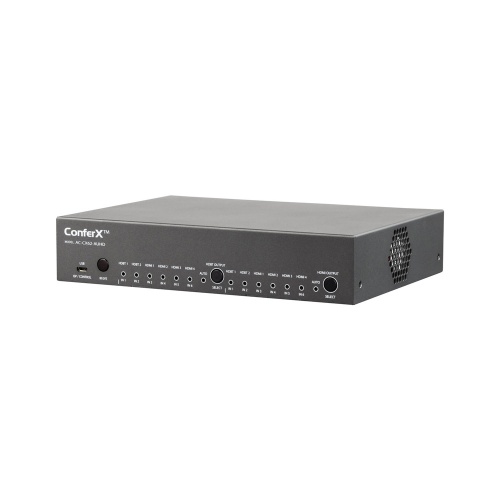

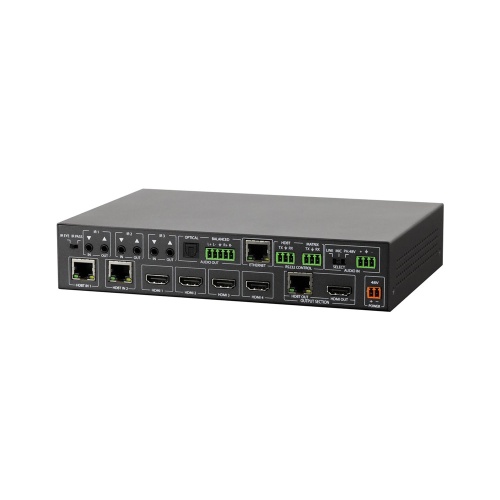

Image of 8A-ACCX62AUH

AV Pro Edge AC-CX62-AUHD ConferX 6x2 HDMI Matrix Switcher with HDBaseT and Scaling

AC-CX62-AUHD|8A-ACCX62AUH

AV Pro Edge AC-CX62-AUHD ConferX 6x2 HDMI Matrix Switcher with HDBaseT and Scaling

AC-CX62-AUHD|8A-ACCX62AUH

Sign In for Dealer Pricing

Become an ADI Customer

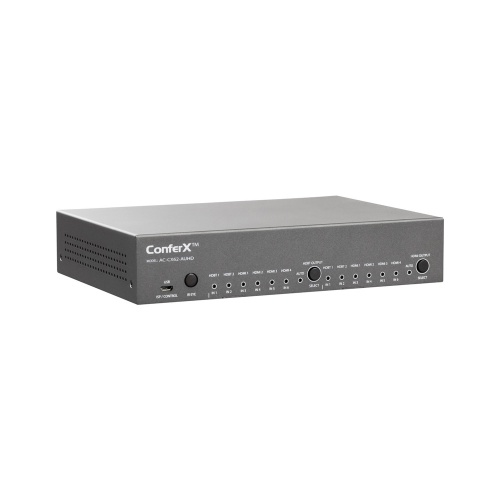

Image of 8A-ACCX62AUH

AV Pro Edge AC-CX62-AUHD ConferX 6x2 HDMI Matrix Switcher with HDBaseT and Scaling

AC-CX62-AUHD | 8A-ACCX62AUH

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The ConferX 6x2 Matrix is a 4K matrix switcher designed for conference rooms, classrooms, and huddle spaces, capable of displaying any six sources via HDBaseT and HDMI outputs. It supports HDMI 2.0 with 18 Gbps bandwidth, 4K60 4:4:4 video, and HDCP 2.3, ensuring high-performance video distribution. The matrix features independent outputs, additional audio inputs and outputs, and advanced EDID management, enabling seamless integration with microphones or intercom systems. The device includes a web-based control GUI, supports third-party control systems, and is CE Certified and RoHS Compliant. Two HDBaseT inputs allow use with ConferX HDBaseT Wall Plate Transmitters located up to 100 meters away, enhancing system versatility and reach.

Main Features

  • Supports 4K switcher with six sources through HDBaseT and HDMI outputs
  • Independent outputs allowing two sources to show simultaneously
  • Includes audio input and output for microphone or intercom systems
  • Two HDBaseT inputs compatible with ConferX HDBaseT Wall Plate Transmitters
  • Supports video inputs HDMI, VGA, USB-C via Wall Plate Transmitters up to 100 meters away
  • HDMI 2.0 with 18 Gbps bandwidth support on HDMI and HDBaseT outputs
  • 4K60 4:4:4 support on HDMI and HDBaseT output
  • Compliant with HDCP 2.3 and all earlier versions
  • Features advanced EDID management
  • Web-based control GUI with auto and one-button control options

    • General Information

    Name:AV Pro Edge AC-CX62-AUHD ConferX 6x2 HDMI Matrix Switcher with HDBaseT and Scaling
    Category:AV Pro Edge, Pro AV, Commercial Video Signal Distribution, Pro HDMI Switchers
    UPC Code:850001710831
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
    Installation Instructions
    Additional Resources
