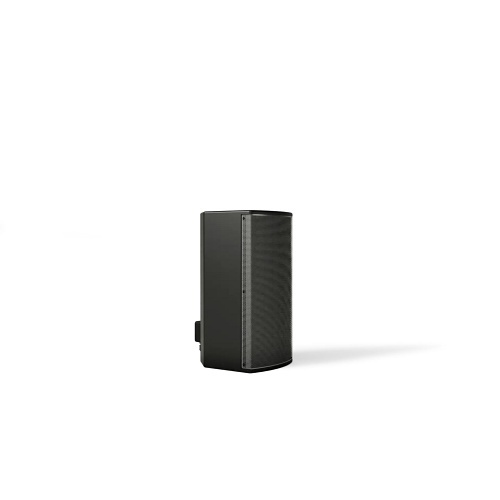

Image of 1B-893798010
Shop all Bose Professional

Bose Professional 893798-0100 ArenaMatch Utility AMU108-120 Outdoor Loudspeaker, Black

893798-0100|1B-893798010
Shop all Bose Professional

Bose Professional 893798-0100 ArenaMatch Utility AMU108-120 Outdoor Loudspeaker, Black

893798-0100|1B-893798010

Sign In for Dealer Pricing

Become an ADI Customer
Image of 1B-893798010
Bose Professional

Bose Professional 893798-0100 ArenaMatch Utility AMU108-120 Outdoor Loudspeaker, Black

893798-0100 | 1B-893798010

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs. Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10'' weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation. AMU108-120 provides wide, even coverage with a rotatable 120 x 60 constant-directivity high-frequency horn, 90 Hz – 16 kHz frequency response, and 121 dB peak SPL, delivering excellent output in a compact enclosure.

Main Features

  • Two-way transducer setup, featuring a high excursion woofer and high-frequency compression driver, enhanced by a passive crossover with optimized filters
  • IP55 weather-rated with three-layer stainless steel grille, water-resistant woofer, industrial polyurethane exterior coating, and molded cover for input panel protection
  • Weather-sealed internal 70/100V transformer with tap setting switch and 8-ohm bypass
  • Stainless-steel U-bracket with rear-enclosure M8 threaded inserts to accept third-party accessory mounting hardware
  • Compatible accessories include- surface-mount pan-and-tilt bracket, single-point suspension bracket with multi-angle attachment points, and external pole adapter for portable use
  • Compact cabinet construction with rust-resistant suspension points
  • Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
  • Easy integration with Bose Professional electronics and loudspeakers makes configuration and operation much simpler and quicker
  • AMU is a stocked product with no custom order or surcharge
  • Available in black or white finish to match the design of your project

    • General Information

    Name:Bose Professional 893798-0100 ArenaMatch Utility AMU108-120 Outdoor Loudspeaker, Black
    Category:Bose Professional, Pro AV, Commercial Audio, Pro Speakers
    UPC Code:840409500011
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
