Product Overview
AXIS Q6010-E Network Camera is a multidirectional camera designed for operation with any AXIS Q60-E PTZ Network Camera. Together they deliver 360° overview for total situational awareness and great details. It's ideal for active city surveillance, for instance at street crossings or squares.
Total situational awareness- 24/7
Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6010-E is specially designed for operation with any AXIS Q60-E PTZ Network Camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. Additionally, this camera offers autopilot for automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q60-E PTZ Network Camera will automatically track the object within the viewing area.
Great image quality - day and night

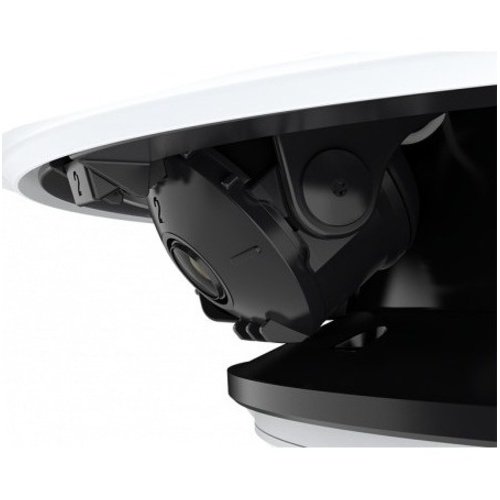

AXIS Q6010-E features four 5 MP sensors and delivers a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265, significantly lowers bandwidth and storage requirements without compromising image quality.
Cost-efficient installation
Using the same bracket, power supply and network cable as the connected AXIS Q60-E PTZ Net-work Camera, there's no extra equipment required for AXIS Q6010-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details from one camera unit.
General Information
Name : AXIS Q6010-E Q60 Series 4x5MP Outdoor WDR 360° Multidirectional IP Camera, for Use with Q60-E PTZ Cameras, 2.8mm Lens, White , AXIS Communications
Category : Panoramic Cameras
UPC Code : 7331021070141
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-01981001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 01981-001
NDAA Compliant : Yes
Product Model : Q6010-E 60 Hz
Product Name : Q6010-E Network Camera
Product Series : Q60
Product Type : Network Camera
Weight (Approximate) (g) : 4500
Technical Information
Effective Camera Resolution : 5MP
Field of View : Horizontal field of view: 360° - Vertical field of view: 84
HD Recording : Yes
Lens Type : Fixed
Maximum Aperture : f/2
Maximum Focal Length (mm) : 2.8
Maximum Frame Rate : 20 fps
Minimum Focal Length : 2.8 mm
Video Formats : H.264, H.265, MPEG-4
Camera
Connectivity Technology : Wired
Image Sensor Type : CMOS
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 5000000
Maximum Video Resolution : 2592 x 1944
Minimum Illumination (lux) : 0.03
Number of Sensors : 4
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Maximum Operating Temperature (°F) : 122
Minimum Operating Temperature : -58°F (-50°C)
Minimum Operating Temperature (°F) : -58
Operating Humidity : 100%
Exposure
Longest Shutter Speed : 1/20 Second
Shortest Shutter Speed : 1/32500 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8 mm
Lens Included : Yes
Maximum Focal Length : 2.8 mm
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Diameter (mm) : 395
Form Factor : Dome
Height : 7.9"
Height (mm) : 201
Weight (Approximate) : 9.92 lb
Power Description
Input Voltage : 24V AC, 24V DC
Input Voltage (V AC) : 24
Input Voltage (V DC) : 24
Product Information
Diameter : 15.6"
Mount Type : Bracket Mount, Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 2.8
Storage
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 20
Warranty
Limited Warranty : 5 Years
Miscellaneous
Country of Origin : MX
Features : Active Tampering Alarm, Auto Tracking, Day/Night, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, PTZ, Removable IR Cut-off Filter, White Balance, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Ingress Protection Rating : IP66
Package Contents : <ul> <li>Q6010-E Network Camera</li> <li>Q60-E Adapter</li> <li>Bayonet Screws</li> <li>Installation Guide</li> <li>Windows Decoder 1-user License</li> </ul>
TAA Compliant : Yes
