Comprehensive CDA-CAT14018G Pro AV/IT 4K UHD HDMI to HDBaseT 1x4 Distribution Amplifier, up to 492'

Brand: Comprehensive
ADI #:RH-CAT14018G Model #: CDA-CAT14018G  Name: Comprehensive CDA-CAT14018G Pro AV/IT 4K UHD HDMI to HDBaseT 1x4 Distribution Amplifier, up to 492'
  • HDMI 2.0, HDCP 2.2 and HDCP 1xCompliant
  • Supports 18 Gbps video bandwidth
  • Supports video resolution up to 4K and 2K at 60 Hz 4:4:4

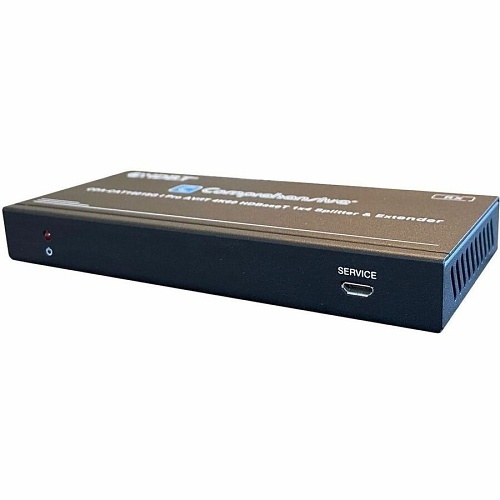

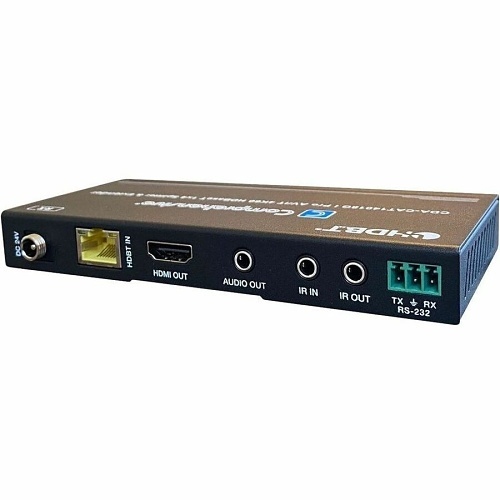

Image of RH-CAT14018G

Product Overview

The CDA-CAT14018G is an 18 Gbps HDMI 1x4 HDBaseT Distribution Splitter that can distribute one source signal to any 4-Display devices. The HDMI signal transmission distance can be extended up to 393ft/120m at the resolution of 4K and 2K at 60 Hz or up to 492ft/150m at 1080Pat 60 Hz via a single CAT6/6a/7 cable. The CDA-CAT14018G supports up to 7.1-Channels HD audio pass-through, audio extract function and advanced EDID management.

General Information

Name : Comprehensive CDA-CAT14018G Pro AV/IT 4K UHD HDMI to HDBaseT 1x4 Distribution Amplifier, up to 492' , Comprehensive
Category : Pro HDMI Extenders
UPC Code :
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : RH-CAT14018G
Brand Name : Comprehensive
Manufacturer Part Number : CDA-CAT14018G
Product Line : Pro AV/IT
Product Type : Audio/Video Distribution Amplifier

Technical Information

Maximum Operating Distance : 492'

Display & Graphics

Maximum Video Resolution : 3840 x 2160

Interfaces/Ports

Number of HDMI Inputs : 1
Number of HDMI Outputs : 1
Number of Network (RJ-45) Ports : 4

Media & Performance

Maximum Operating Distance (mm) : 149961.6

Physical Characteristics

Weight (Approximate) : 1.88 lb

Power Description

Input Voltage : 120V AC, 230V AC
Input Voltage (V AC) : 120, 230

Miscellaneous

Country of Origin : CN
