Product Overview
The SISPM1040-362-LRT is a full managed PoE+ switch suitable for connecting and powering devices in hardened environments. The switch can supply up to 30 Watts per port on all four PoE ports simultaneously. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire PoE+ network.
Transition Networks' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments.
General Information

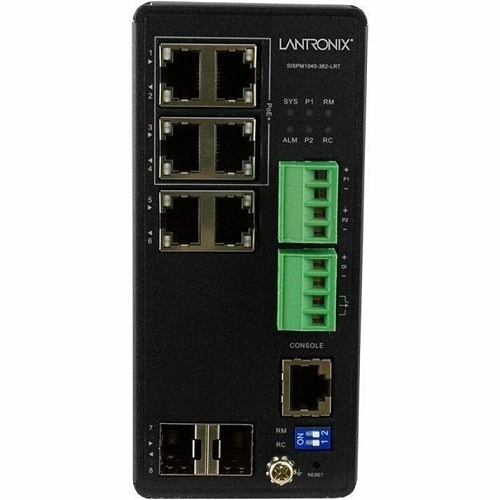

Name : Lantronix SISPM1040-362-LRT Managed Hardened Gigabit Ethernet PoE+ Switch, 4-10/100/1000Base-T PoE+ Ports, 2-10/100/1000Base-T RJ-45 and 2-100/1000Base-X SFP Slots , Lantronix
Category : Network Switches
UPC Code : 648177041152
Country of Origin : Taiwan, Province of China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : P6-SISPM0436
Brand Name : Transition Networks
Manufacturer : Transition Networks, Inc
Manufacturer Part Number : SISPM1040-362-LRT
NDAA Compliant : No
Product Model : SISPM1040-362-LRT
Product Name : Managed Hardened PoE+ Switch
Product Type : Ethernet Switch
Weight (Approximate) (g) : 907.185
Technical Information
Media Type Supported : Optical Fiber, Twisted Pair
I/O Expansions
Expansion Slot Type : SFP
Number of SFP Slots : 2
Number of Total Expansion Slots : 2
Shared SFP Slot : No
Interfaces/Ports
Modular : Yes
Port/Expansion Slot Details : 2 x Gigabit Ethernet Expansion Slot, 6 x Gigabit Ethernet Network
Stack Port : Yes
Total Number of Network Ports : 6
Uplink Port : No
Management & Protocols
Manageable : Yes
Media & Performance
Network Technology : 10/100/1000Base-T, 1000Base-X
Network & Communication
Ethernet Technology : Gigabit Ethernet
Layer Supported : 2
Physical Characteristics
Depth : 5.30" (134.62 mm)
Depth (mm) : 134.62
Form Factor : Rack Mount
Height : 5.40" (137.16 mm)
Height (mm) : 137.16
Weight (Approximate) : 907.2 g
Width : 2.40" (60.96 mm)
Width (mm) : 60.96
Power Description
Power Source : Power Supply
Redundant Power Supply Supported : Yes
Warranty
Limited Warranty : 5 Year
Miscellaneous
Country of Origin : Taiwan
TAA Compliant : No
