Product Overview
This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty. The “P” style is a pre-wired switch with 2 feet of conductor cable. A broad range of mounting brackets are also available.
General Information

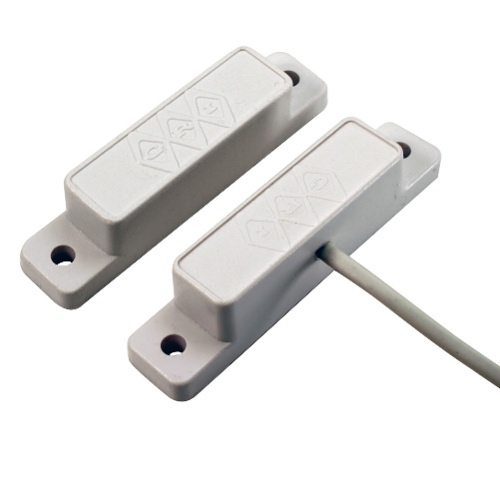

Name : GRI 29PC-W 29P Series Standard Surface Mount Magnetic Reed Switch Set with Pre-Wired 24" Lead, Standard Gap, Open/Closed, SPDT, C, White , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625007530
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : GI-29PCW
Brand Name : GRI
Manufacturer : George Risk Industries
Manufacturer Part Number : 29PC-W
Product Model : 29PC-W
Product Name : 29PC-W Magnetic Contact
Product Series : 29
Product Type : Magnetic Contact
Technical Information
Contact Configuration : SPDT
Contact Form : Form C
Contact Resistance : 140000 Micro Ohm
Contact Resistance (Ohm) : 0.14
Lead Length : 24"
Lead Length (mm) : 609.6
Mounting Type : Surface Mount
Standard Gap : 1"
Standard Gap (mm) : 25.4
Camera
Connectivity Technology : Wired
Physical Characteristics
Application/Usage : Commercial, Industrial
Color : White
Product Material : Steel
Power Description
Power Source : DC
Product Information
Contact Type : Closed Loop, Open Loop
Installation Type : Commercial
Warranty
Limited Warranty : Lifetime
Miscellaneous
Additional Information : <ul> <li>Screw Down Flanges</li> <li>Concealed Screw Terminals on 28 Series</li> </ul>
Certifications & Standards : <ul> <li>UL</li> <li>ULC</li> </ul> <p></p>
Country of Origin : US
Features : End of Line (EOL) Resistor
Package Contents : <ul> <li>29PC-W Magnetic Contact</li> <li>Covers</li> <li>Spacers</li> <li>Mounting Hardware</li> </ul>
