TP-Link TL-SF1005D 5-Port 10/100mbps Desktop Switch

Brand: TP-Link
ADI #:FP-TLSF1005D Model #: TL-SF1005D  Name: TP-Link TL-SF1005D 5-Port 10/100mbps Desktop Switch
  • PLUG-AND-PLAY - Easy setup with no configuration or no software needed.
  • ETHERNET SPLITTER Connectivity to your router or modem router for additional wired connections (laptop, gaming console, printer, etc.).
  • 5 Port FAST ETHERNET - 5 10/100 Mbps auto-negotiation RJ45 ports greatly expand network capacity.

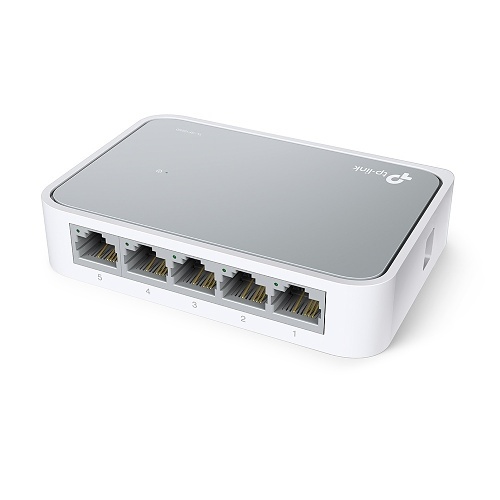

Image of FP-TLSF1005D

Product Overview

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 68% of power consumption, making it an eco-friendly solution for your home or office network. TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.

General Information

Name : TP-Link TL-SF1005D 5-Port 10/100mbps Desktop Switch , TP-Link
Category : Network Switches
UPC Code : 845973020064
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : FP-TLSF1005D
Brand Name : TP-Link
Manufacturer : TP-LINK Technologies Co., Ltd
Manufacturer Part Number : TL-SF1005D
Packaged Quantity : 1
Product Model : TL-SF1005D
Product Name : 5-Port 10/100Mbps Desktop Switch
Product Type : Ethernet Switch

Technical Information

Material : Plastic
Media Type Supported : Twisted Pair
Power Consumption : 1.90 W

Interfaces/Ports

Network (RJ-45) : Yes
Port/Expansion Slot Details : 5 x Fast Ethernet Network
Total Number of Network Ports : 5

Media & Performance

Network Technology : 10/100Base-TX

Network & Communication

Ethernet Technology : Fast Ethernet
Layer Supported : 2
Networking Standards : IEEE 802.3x

Physical Characteristics

Depth : 2.80" (71.12 mm)
Depth (mm) : 71.12
Form Factor : Desktop, Wall Mountable
Height : 0.90" (22.86 mm)
Height (mm) : 22.86
Width : 4.10" (104.14 mm)
Width (mm) : 104.14

Power Description

Input Voltage : 110 V AC, 220 V AC
Input Voltage (V AC) : 110, 220
PoE (RJ-45) Port : No
Power Consumption (W) : 1.900
Power Source : Power Adapter
Redundant Power Supply Supported : No

Warranty

Limited Warranty : 2 Year
Limited Warranty (Second) : 2 Year

Miscellaneous

Country of Origin : China
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul> <li>5-Port 10/100Mbps Desktop Switch</li> <li>Power Adapter</li> <li>Installation Guide</li> </ul>
