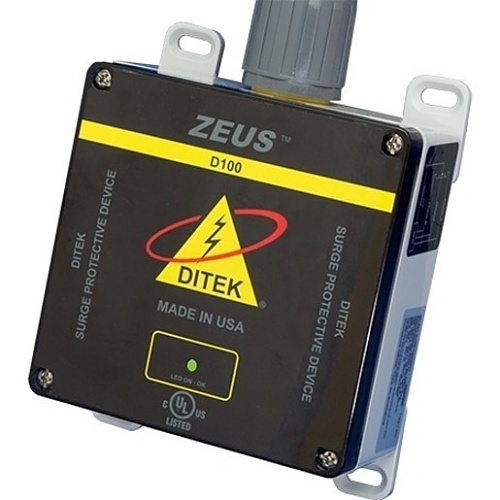

DITEK D100-120/2401 Industrial Surge Protective Device, 100kA/Phase, 120/240VAC Split Phase Panels

Brand: DITEK
ADI #:DK-D10012241 Model #: D100-120/2401  Name: DITEK D100-120/2401 Industrial Surge Protective Device, 100kA/Phase, 120/240VAC Split Phase Panels
  • 100,000 Amp surge current rating per phase, 50,000 Amps per mode, ensures long service life
  • Compact size enables close mounting to protected panel, minimizing wire length and maximizing performance
  • Diagnostic LED indicates system power and SPD function
DITEK 100kA/?, 50kA/Mode Surge Protective Device

Product Overview

DITEK's 100kA industrial surge protectors are designed to provide protection to AC power systems in the most demanding environments.. The D100 Series incorporates individually fused components for maximum performance and protection. Available in a wide range of voltage configurations, the compact D100 is an excellent choice for electrical panel protection.

General Information

Name : DITEK D100-120/2401 Industrial Surge Protective Device, 100kA/Phase, 120/240VAC Split Phase Panels , DITEK
Category : Surge Protection Modules
UPC Code :
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : DK-D10012241
Brand Name : DITEK
Manufacturer : DITEK Corporation
Manufacturer Part Number : D100-120/2401
Product Line : ZEUS
Product Model : D100-120/2401
Product Name : 100kA/Φ, 50kA/Mode Surge Protective Device
Product Series : D100
Product Type : Surge Suppressor/Protector
Weight (Approximate) (g) : 907.185

Technical Information

Output Voltage : 120V AC, 240V AC
Output Voltage (V AC) : 120, 240

Battery Information

Output Voltage (V DC) : 12, 24

Physical Characteristics

Depth : 2.40" (60.96 mm)
Height : 4.70" (119.38 mm)
Height (mm) : 119.38
Weight (Approximate) : 907.2 g
Width : 4.70" (119.38 mm)
Width (mm) : 119.38

Power Description

Input Voltage : 120 V AC, 240 V AC
Input Voltage (V AC) : 120, 240

Warranty

Limited Warranty : 10 Year

Miscellaneous

Country of Origin : United States
TAA Compliant : Yes
