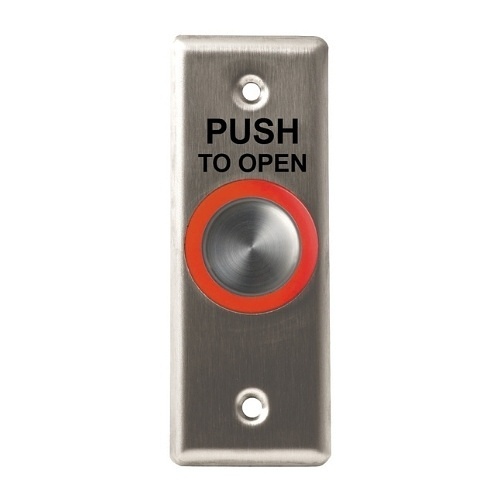

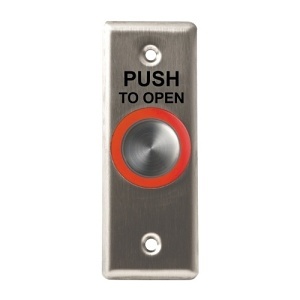

Camden CM-9610/3 Illuminated Piezoelectric Push/Exit Switch, Narrow, PUSH to OPEN, Bright Stainless Steel

Brand: Camden Door Controls
ADI #:CM-96103 Model #: CM-9610/3  Name: Camden CM-9610/3 Illuminated Piezoelectric Push/Exit Switch, Narrow, PUSH to OPEN, Bright Stainless Steel
  • Rugged stainless steel face plate
  • Red and/or green illumination
  • Fail safe / non fail safe selectable
CM-96103

Product Overview

CM-9600 and CM-9610 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer.

CM-9600 is single gang width (2-3/4") and the CM-9610 is only 1" & 3/4" wide, perfect for door frames or narrow areas. The large 1" round diameter button is easy to activate. Illumination and power relay is 12 to 24 VDC. Switch illumination is jumper selectable and may be set for On, Off, Green to Red, Red to Green or non-lit operation. Field selectable for N/O or N/C contact output and fail safe/fail secure operation.

General Information

Name : Camden CM-9610/3 Illuminated Piezoelectric Push/Exit Switch, Narrow, PUSH to OPEN, Bright Stainless Steel , Camden Door Controls
Category : Door Release Buttons
UPC Code : 670454175274
Country of Origin : Canada. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : CM-96103
Manufacturer Part Number : CM-9610/3

Power Description

Input Voltage (V DC) : 12, 24, 30
