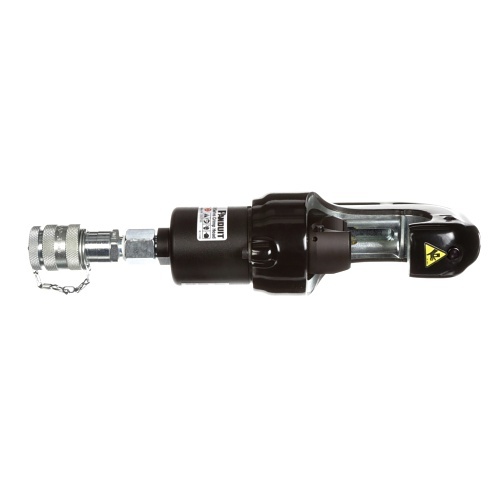

Panduit CT-920CH/CV 12 Ton Hydraulic Crimp Head

CT-920CH/CV|P9-CT920CHCV
Shop all Panduit

Panduit CT-920CH/CV 12 Ton Hydraulic Crimp Head

CT-920CH/CV|P9-CT920CHCV

Sign In for Dealer Pricing

Become an ADI Customer
Image of P9-CT920CHCV
Panduit

Panduit CT-920CH/CV 12 Ton Hydraulic Crimp Head

CT-920CH/CV | P9-CT920CHCV

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Panduit BlackFin Crimp Head Tool, Die-Type Electro-Hydraulic, For Use With; Panduit CT-902HP Hydraulic Pump and 10 ft CT-900HPH Hydraulic Hose, 12 Ton(108 kN) Crimp Force, Open "C" Rotating Crimp Head, 12.6 in L x 2.9 in W x 5.1 in H

Main Features

  • Incorporates parker type quick-connect fittings to ease installation and save time
  • Requires 10000 psi hydraulic pump system(recommended Panduit CT-902HP pump and accessories)
  • Durable crimp head design for long life
  • Open "C" head design allows for easy loading of crimping dies and connectors, saves time
  • Uses Panduit CD-920 and CD-930 crimp dies to provide easy matching of crimping die to connector
  • Dies installed using spring loaded die retention pins, no need for tools
  • Cast-in handle allows crimp head to be mounted in a bench vice
  • Provided with 2-layer PVC covered crimp head
  • Crimps Panduit copper compression lugs and splices from 8 AWG - 750 kcmil copper code, 8 AWG - 535 kcmil copper flex, metric 10 - 400 sq mm class 2r and 10 - 300 sq mm class 5f and 6f , 6 AWG - 600 kcmil aluminum wire
  • Crimps full range of Panduit copper CTAPF, CTAP, HTCT taps and direct burial GCE grounding connectors up to 250 kcmil

    • General Information

    Name:Panduit CT-920CH/CV 12 Ton Hydraulic Crimp Head
    Category:Panduit, Tools & Hardware, Tools, Crimping & Punch Down Tools
    UPC Code:
    Country of Origin:. Country of origin is subject to change.
