Image of ZX-EVEX2004
Shop all Evolution by Vanco

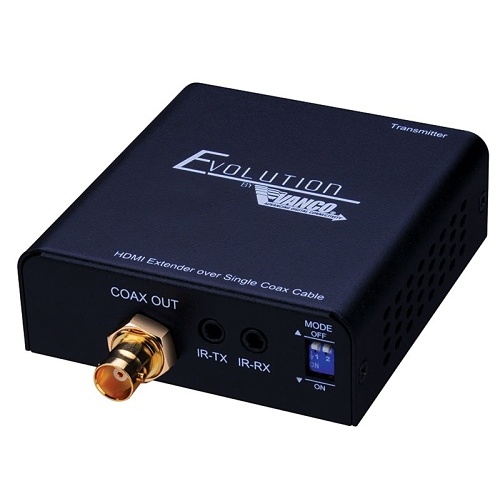

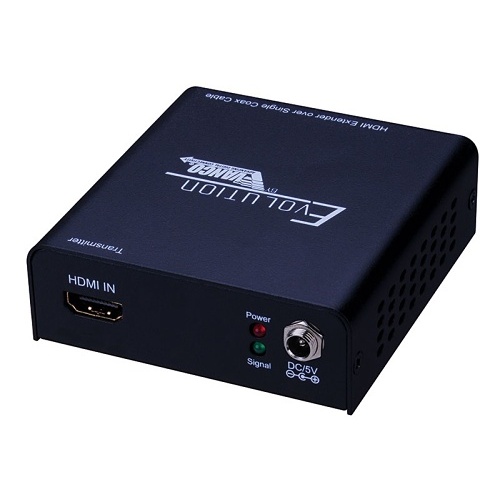

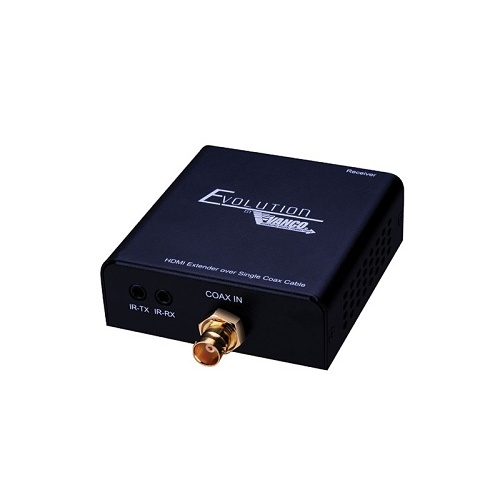

Evolution EVEX2004 HMDI over Single Coax Extender (Replaces 280567)

EVEX2004|ZX-EVEX2004
Shop all Evolution by Vanco

Evolution EVEX2004 HMDI over Single Coax Extender (Replaces 280567)

EVEX2004|ZX-EVEX2004

Sign In for Dealer Pricing

Become an ADI Customer
Evolution by Vanco

Evolution EVEX2004 HMDI over Single Coax Extender (Replaces 280567)

EVEX2004 | ZX-EVEX2004

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Discover the power of seamless integration with the Evolution by Vanco EVEX2004 HDMI Extender. This compact device extends high-definition video and audio signals up to 394ft/120m over RG6 coaxial cable and up to 164ft/50m over RG59, using just a single cable. It supports 1080p resolution and is compatible with HDMI and HDCP devices. Featuring bi-directional IR for device control and EDID management for optimal source-display communication, it's perfect for setups that already have coaxial infrastructure. Enhance your audio-visual experience with support for 7.1-channel audio, including DTS-HD and Dolby TrueHD. Ideal for both professional and home entertainment systems, the EVEX2004 ensures a high-quality, reliable connection. Upgrade your system today and experience the ultimate in convenience and performance!

Main Features

  • Allows HDMI audio/video signals to be transmitted using a single coaxial cable
  • Wide band Bi-directional IR system (20KHz to 60KHz) allowing for control of source or display
  • Transmission Range: Extends 1080p resolution up to 394'/120m over RG6 coaxial cable (dual and quad-shielded); Extends 1080p resolution up to 164'/50m over RG59 coaxial cable
  • Works with HDMI and HDCP compliant devices
  • Supports up to 1080p/60 High Definition resolution
  • Supports video resolutions 480i- 576i- 720p- 1080i- and 1080p
  • 7.1-channel audio supported; Supports DTS-HD and Dolby TrueHD high bit rate audio
  • EDID manual select control – Supports Copy EDID
  • Fully compatible with any Evolution by Vanco product
  • Dimensions: 3.35" (85mm) W x 1.1" (28mm) H x 3.19" (81mm) D

    • General Information

    Name:Evolution EVEX2004 HMDI over Single Coax Extender (Replaces 280567)
    Category:Evolution by Vanco, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Extenders, Pro HDMI Extenders
    UPC Code:741835100250
    Country of Origin:Taiwan, Province of China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
    Manufacturer Brochure
