Image of TC-SRW12USNE
Acheter Eaton Tripp Lite

Eaton Tripp Lite SRW12USNEMA SmartRack Switch-Depth Wall Mount Small Rack Enclosure with Hinged Back for Harsh Environments, 20.5" (52cm), 200lb (90.7kg), 12U

SRW12USNEMA|TC-SRW12USNE
Acheter Eaton Tripp Lite

Eaton Tripp Lite SRW12USNEMA SmartRack Switch-Depth Wall Mount Small Rack Enclosure with Hinged Back for Harsh Environments, 20.5" (52cm), 200lb (90.7kg), 12U

SRW12USNEMA|TC-SRW12USNE

Se connecter prix revendeur

Devenir client ADI
Eaton Tripp Lite

Eaton Tripp Lite SRW12USNEMA SmartRack Switch-Depth Wall Mount Small Rack Enclosure with Hinged Back for Harsh Environments, 20.5" (52cm), 200lb (90.7kg), 12U

SRW12USNEMA | TC-SRW12USNE

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

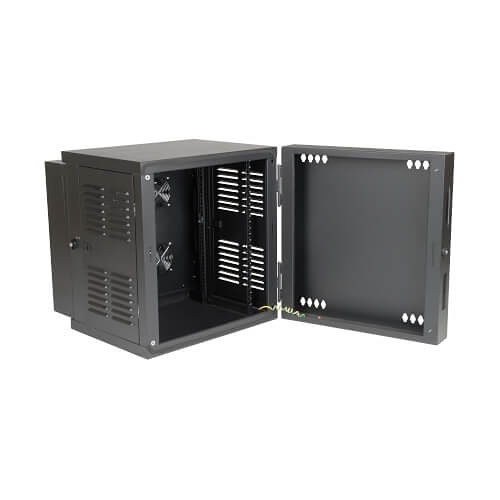

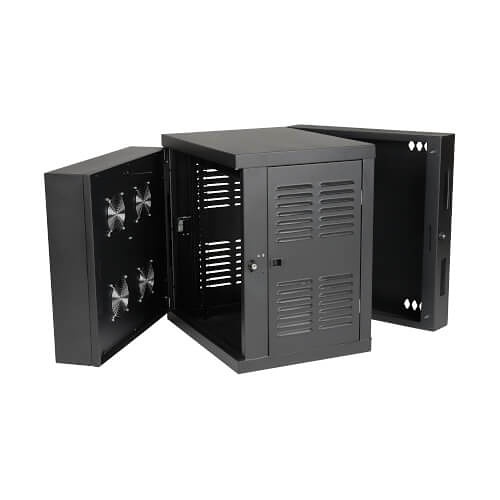

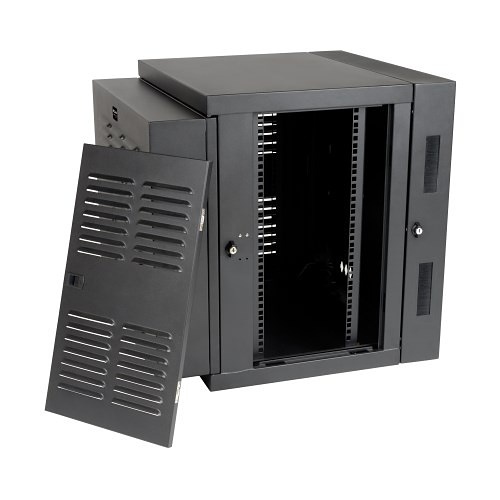

The SRW12USNEMA SmartRack 12U Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19" rack equipment in harsh, dirty work environments with limited floor space, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs and warehouses. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lb (90.7 kg). The SRW12USNEMA protects sensitive equipment against dirt, dust, lint, oil, drips and splashes. Its built-in air filter, louvered vents on the front door and side panels, sealed gasket around the door frames and brush strips around cable access points prevent dripping water, oil and airborne contaminants from getting inside. You can replace the air filter with standard, off-the-shelf furnace filters. Four high-performance intake fans built into the front door pull filtered air through the cabinet to keep your equipment cool. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The reversible doors can open left or right. The doors and side panels lock securely to help prevent damage, tampering or theft. Convenient ports on the back door allow easy cable routing. The SRW12USNEMA comes fully assembled and ready to mount to the wall. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8" increments to house equipment up to 20.5" deep, such as network switches and patch panels.

Principales caractéristiques

  • 12U rack space for EIA-standard 19 in. equipment
  • 200 lb (90.7 kgs) maximum load capacity
  • Built-in air filter and louvered vents
  • Sealed Cable Ports for dust and moisture resistance
  • Hinged cabinet for easy access and maintenance
  • Reversible doors for flexible configurations
  • Lockable side panels and doors for security
  • Vented panels and fans for optimal airflow
  • Ships fully assembled for quick installation
  • PCI DSS Compliance for secure media storage

    • Renseignements généraux

    Nom:Eaton Tripp Lite SRW12USNEMA SmartRack Switch-Depth Wall Mount Small Rack Enclosure with Hinged Back for Harsh Environments, 20.5" (52cm), 200lb (90.7kg), 12U
    Category:Eaton Tripp Lite, Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
    UPC Code:037332168016
    Country of Origin:China. Country of origin is subject to change.

    Spécifications

    Documents et ressources sur les produits

    Brochure du fabricant
