Product Overview

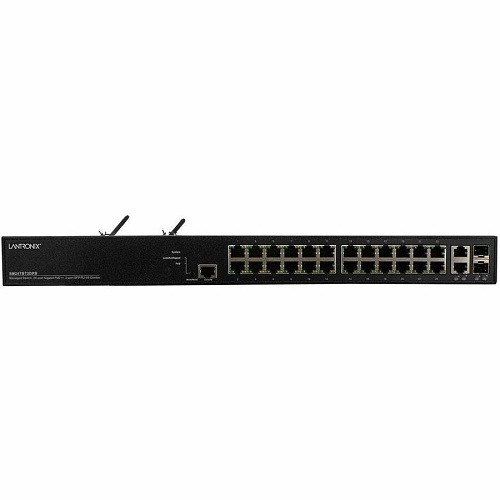

(24) 10/100/1000Base-T Ports + (2) 100/1000Base-X SFP/RJ-45 Combo Ports

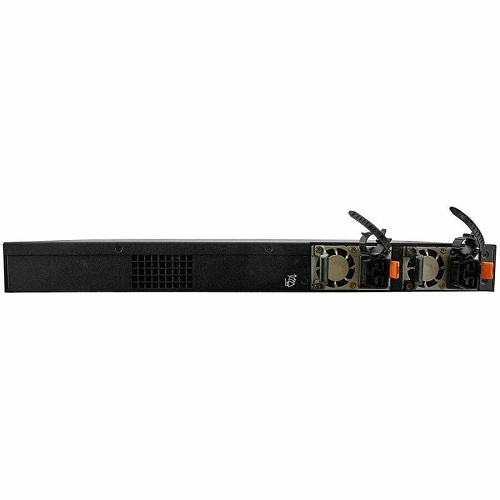

This switch is a high performance Layer 2 managed switch with 52 Gbps switching capacity. Itprovides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) additional100/1000Mbps dual speed SFP/RJ-45 combo ports. The SM24TBT2DPB complies with the latestIEEE 802.3bt PoE++ standard and supplies up to 90 Watts per port. It can provide full PoE++ outputon all 24 ports when equipped with the dual hot-swappable PS-ACDC-1200 power supplies. TheSM24TBT2DPB can be powered by low-line and high-line AC or DC power and Digital Electricity*,making it ideal for use in a wide variety of building applications.
General Information
Name : Lantronix SM24TBT2DPB Managed POE++ Network Switch with 24-Ports, Supporting 10/100/1000BASE-T , Lantronix
Category : Network Switches
UPC Code : 783384250888
Specifications
General Information
ADI Part Number : P6-24TBT2DPB
Brand Name : Transition Networks
Manufacturer : Lantronix, Inc
Manufacturer Part Number : SM24TBT2DPB
Product Model : SM24TBT2DPB
Product Name : SM24TBT2DPB Ethernet Switch
Product Series : SM24TBT2DPB
Product Type : Ethernet Switch
Technical Information
Media Type Supported : Optical Fiber, Twisted Pair
Power Consumption : 52W
I/O Expansions
Expansion Slot Type : SFP (mini-GBIC)
Number of SFP+ Slots : 2
Number of Total Expansion Slots : 2
Shared SFP Slot : Yes
Interfaces/Ports
Modular : Yes
Port/Expansion Slot Details : 2 x Gigabit Ethernet Combo (Ethernet/SFP), 24 x Gigabit Ethernet Network PoE++
Total Number of Network Ports : 26
Management & Protocols
Manageable : Yes
Media & Performance
Network Technology : 10/100/1000Base-T, 1000Base-X
Network & Communication
Ethernet Technology : 10 Gigabit Ethernet
Layer Supported : 2
Networking Standards : IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical Characteristics
Depth : 11.8"
Height : 1.7"
Height (mm) : 43.942
Weight (Approximate) : 11.30 lb
Width : 17.4"
Width (mm) : 441.96
Power Description
Input Voltage : 100-120V AC, 192-254V DC, 200-277V AC, 306-334V DC
Number of Power Supplies Supported : 1
PoE (RJ-45) Port : Yes
Power Source : Power Supply
Warranty
Limited Warranty : Lifetime
Limited Warranty (Second) : Lifetime
Miscellaneous
Country of Origin : TW
Environmental Certification : UL
Features : Hot-swappable
Package Contents : SM24TBT2DPB Ethernet Switch 19" Rack Mount Brackets 1 x PS-ACDC-1200 Power Supply
TAA Compliant : No
