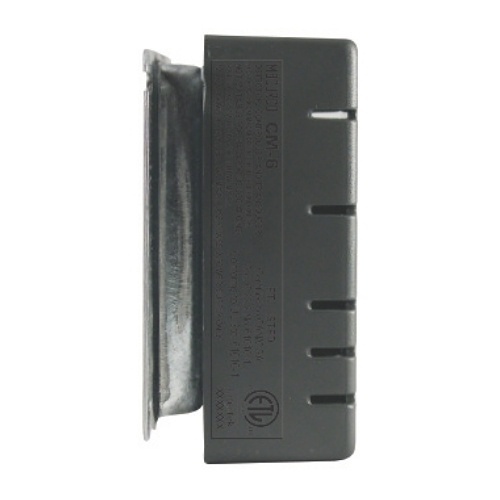

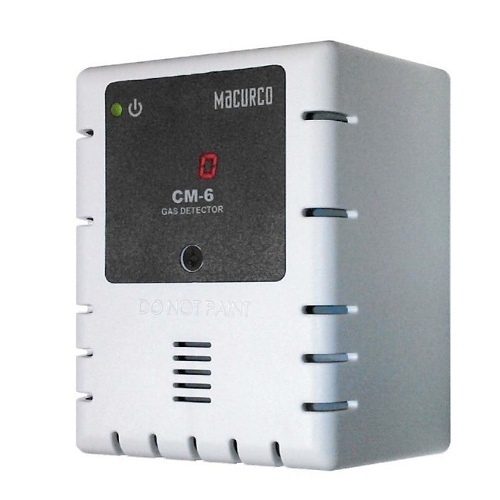

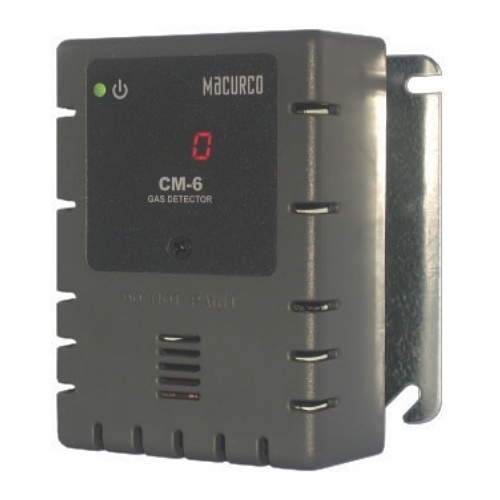

Macurco CM-6 Series Carbon Monoxide CO Fixed Gas Detector, 12-24VAC or 12-32VDC, Gray

Brand: Macurco
ADI #:MA-CM6 Model #: 70-0715-6500-9  Name: Macurco CM-6 Series Carbon Monoxide CO Fixed Gas Detector, 12-24VAC or 12-32VDC, Gray
  • Easy installation to 4x4 electrical boxes via mud plate
  • User selectable settings (Default to industry standards) via two button interface
  • 5 A SPDT fan relay, 0.5A alarm relay to control fans, valves, louvers, horn and strobes
CM-6 GRY CO GAS DTCTR

Product Overview

The CM-6 Low Voltage monitor detects Carbon Monoxide (CO) in commercial facilities. It can be used as a stand-alone detector and controller and as an analog transducer for use with Macurco control panels and other systems - ETL Listed, LADBS Approved

General Information

Name : Macurco CM-6 Series Carbon Monoxide CO Fixed Gas Detector, 12-24VAC or 12-32VDC, Gray , Macurco
Category : Carbon Monoxide Detectors
UPC Code : 051131495807
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : MA-CM6
Brand Name : Macurco
Manufacturer : Aerionics, Inc
Manufacturer Part Number : 70-0715-6500-9
Product Line : Commercial
Product Model : CM-6
Product Name : Commercial CM-6 Gas Leak Sensor
Product Series : 6
Product Type : Gas Detector
Weight (Approximate) (g) : 453.592

Technical Information

Detectable Gas : Carbon Monoxide
Detectable Medium : Gas
Oscillation : Commercial
Sensing Technology : Electrochemical

Camera

Connectivity Technology : Wired

Controls/Indicators

Status Indicators : LED

Physical Characteristics

Application/Usage : Ambulance Bay, Battery Charging Station, Brewery, Bus Depot, Commercial, Fire Station, Loading Dock, Mechanical Room, Parking Lot, Refrigeration Facilities, Restaurant, Storage Facilities, Vehicle Repair Facilities, Warehouse
Color : Gray
Depth : 2.1"
Form Factor : Ceiling Mount, Wall Mount
Height : 4.5"
Height (mm) : 114
Weight (Approximate) : 1 lb
Width : 4"
Width (mm) : 102

Power Description

Input Voltage : 12V AC, 12V DC, 24V AC, 32V DC
Input Voltage (V AC) : 12, 24
Input Voltage (V DC) : 12, 32
Power Source : AC

Product Information

Installation Type : Commercial

Warranty

Limited Warranty : 2 Year

Miscellaneous

Certifications & Standards : UL Listed
Country of Origin : US
UL Listed : Yes
