Product Overview

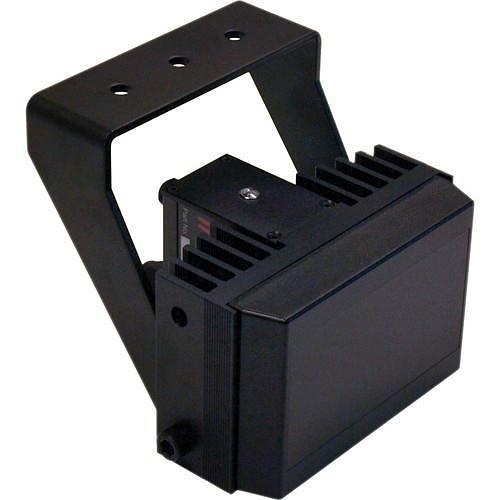

The black 850nm IR148-2 Series Short-Range IR Illuminator from Iluminar is designed to provide IR lighting for CCTV systems. This illuminator has a range of up to 82' and offers an illumination angle of 30°. It also has a built-in photocell and comes with a wall mounting bracket. The light intensity and photocell sensitivity can be adjusted using an IL-RC remote control (available separately). The IP67-rated and vandal-proof IR illuminator is weatherproof for outdoor use. The hardened housing provides protection from harsh weather conditions, such as rapid temperature variations ranging from -58 to 140°F.
Main Features
- Provides IR Lighting to CCTV Cameras
- Built-In Photocell (IR On / Off)
- 4 SMT-Enabled LEDs
- 850nm Wavelength
- Illumination Distance up to 82'
- 43' Horizontal Field of View
- IP67 Weatherproof Rating
General Information
Name:iluminar IR148-A30-24-2 850NM 82 12-32VDC, 24
Category:iluminar, Video Surveillance, Video Accessories, Illuminators
UPC Code:818112020010
Country of Origin:United Kingdom. Country of origin is subject to change.
Specifications
ADI Part Number IP-IR148A302 Brand Name iluminar Manufacturer Part Number IR148-A30-24-2 Product Name IR Illuminators Product Series IR148 Product Type Infrared Illuminator
Material Aluminum, PC, Stainless Steel
Color Black Depth 3" Durability Vandalproof, Weatherproof Width 4"
Country of Origin GB Features Wall Mountable
