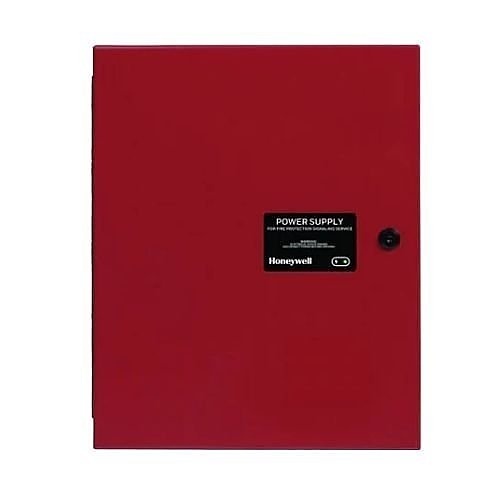

Image of FL-HPFPS10
Fire-Lite Alarms by Honeywell

Fire-Lite HPF-PS10 PS Series Power Supply, 10A, 7-Outputs, Red Cabinet

HPF-PS10 | FL-HPFPS10

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The PS Series is a remote power supply line from Honeywell Power Products and is a direct replacement for the FL-PS10/SK-PS10. The HPF-PS10 is a 10 amp, remote power supply with battery charger that may be connected to any 12 or 24 volt firealarm control panel (FACP) or used as a standalone power supply. The PS Series provides 24 VDC power for NACs (notification appliance circuits) configured as either Class B or Class A (requires the ZNAC-PS option card) with multiple sync protocol options. The PS Series also provides auxiliary power, constant or resettable, suited for detectors, annunciators, door holders, and other fire alarm system peripherals. The PS Series cabinet can hold two 7 AH or 18 AH batteries and can charge up to 33 AH batteries in a separate cabinet. The HPF-PS10E are models rated for 240V operation.

Main Features

  • 10A model
  • 7 outputs
  • Class B and/or Class A NACs
  • Converts from Class B to Class A wiring without losing any outputs using the ZNACPS converter card (sold separately)
  • Configurable for ANSI Temporal 3 or Temporal 4 coded output
  • UL-Listed NAC synchronization using System Sensor, Wheelock, Gentex, or AMSECO appliances
  • Individual NAC power and trouble LEDs for diagnostic efficiency
  • Trouble history mode for diagnostic support
  • Includes integral battery charger capable of charging up to 33 AH batteries
  • Cabinet can house two 7 AH or 18 AH batteries
  • General Information

    Name:Fire-Lite HPF-PS10 PS Series Power Supply, 10A, 7-Outputs, Red Cabinet
    Category:Fire-Lite Alarms by Honeywell, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies, ADI Pro Rewards
    UPC Code:783008113292
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources
