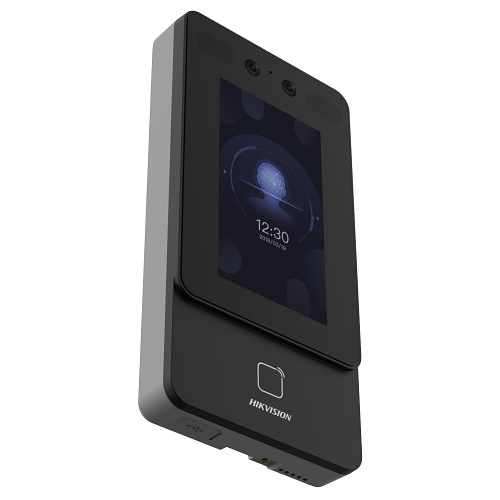

Image of HX-342E1
Shop all Hikvision

Hikvision DS-K1T342DWX-E1 Value Series Face Recognition Terminal, 4.3" LCD Touchscreen

DS-K1T342DWX-E1|HX-342E1
Shop all Hikvision

Hikvision DS-K1T342DWX-E1 Value Series Face Recognition Terminal, 4.3" LCD Touchscreen

DS-K1T342DWX-E1|HX-342E1

Sign In for Dealer Pricing

Become an ADI Customer
Image of HX-342E1
Hikvision

Hikvision DS-K1T342DWX-E1 Value Series Face Recognition Terminal, 4.3" LCD Touchscreen

DS-K1T342DWX-E1 | HX-342E1

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Face recognition terminal adopts deep learning algorithm, which helps to recognize the face faster with higher accuracy. It also supports multiple authentication modes; face/card authentication, etc. It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.

Main Features

  • Max. 1500 faces capacity, and Max. 3000 cards
  • Face Recognition Terminal, 4.3" LCD touch screen, 2MP wide-angle lens, built-in M1 / Felica / DESfire card reading module
  • 2-Way Audio with client software, indoor station, and main station; supports TCP/IP, Wi-Fi
  • Supports ISAPI, ISUP5.0
  • Configuration via the web client
  • Face Recognition Distance, 0.3m to 1.5m; Duration < 0.2 s/User; Accuracy rate = 99%
  • Supports face with mask recognition
  • Powers supply by standard PoE and at the same time powers supply for door lock (12V DC / 1A)
  • Supports platform-applied personal PIN and device-set personal PIN

    • General Information

    Name:Hikvision DS-K1T342DWX-E1 Value Series Face Recognition Terminal, 4.3" LCD Touchscreen
    Category:Hikvision, Access Control, Keypads & Readers, Biometric Readers
    UPC Code:842571150544
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
    Installation Instructions
