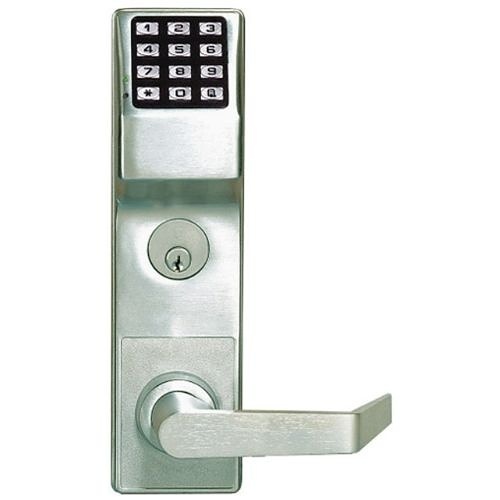

Image of NA-DL65CL10B

Napco DL6500CRL/10B Networx Digital Mortise Lock, Grade 1, Left Hand, Straight Lever

DL6500CRL/10B|NA-DL65CL10B

Napco DL6500CRL/10B Networx Digital Mortise Lock, Grade 1, Left Hand, Straight Lever

DL6500CRL/10B|NA-DL65CL10B

Sign In for Dealer Pricing

Become an ADI Customer
Image of NA-DL65CL10B
Napco Security Technologies

Napco DL6500CRL/10B Networx Digital Mortise Lock, Grade 1, Left Hand, Straight Lever

DL6500CRL/10B | NA-DL65CL10B

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The Alarm Lock DL6500CRL/10B is a premium wireless mortise lock designed for use in educational, commercial, and high-security environments. This lock is part of the Trilogy Networx series, which communicates wirelessly via Ethernet or 802.11B/G, eliminating the need for door-to-door programming and audit trail retrieval. It combines advanced access control functionality with ease of installation and long-term reliability. The DL6500CRL/10B offers enhanced security features like Request to Exit (REX) and Door Position Switch (DPS), making it an ideal choice for environments that require tight access control and monitoring. This lock can be installed in under an hour, and integrates with the Trilogy Networx system to provide scalable access control for up to 2,000 doors and 5,000 users. With its robust battery life and simple setup, it delivers excellent value while reducing installation complexity and costs.

Main Features

  • Grade 1 digital mortise lock
  • Left hand, straight lever design
  • Built-in HID proximity ID card reader
  • Full-metal digital keypad
  • Bi-directional radio communication
  • Battery-operated with 4 C-cell batteries included
  • Manual key override with SCI keyway
  • Includes 4-7/8'' ASA Strike

General Information

Name:Napco DL6500CRL/10B Networx Digital Mortise Lock, Grade 1, Left Hand, Straight Lever
Category:Napco Security Technologies, Access Control, Locking Devices, Electronic Locks, ADI Pro Rewards
UPC Code:
Country of Origin:. Country of origin is subject to change.

Specifications

Product Documents and Resources
