Product Overview
S series models come standard with AI automatic tracking. It can automatically detect, zoom, and track intruders in a wide area, thereby supporting surveillance operators in many scenes. It also achieves the industry's highest level of drive durability to withstand high-speed and high-frequency camera movement by the automatic monitoring function.
AI monitoring camera, standard with AI Auto-tracking
- AI analysis functionality is standard on the camera side to promote automated surveillance. Accurately detects people and vehicles and automatically zooms in on intruders. Support surveillance operators to ensure that no tracked object is missed. Additional applications can be installed (up to two applications) to expand analysis functions such as AI privacy guard, person/vehicle attribute detection, etc.
Highly durable pan-tilt drive unit Reduced maintenance costs
- High durability gear drive achieves PAN and TILT drive durability (3.7 million P&T movements). Low failure rate even with high frequency drive and reduced maintenance cost by minimizing the maintenance cycle.
Easy installation
- Both pigtail or gromet are available to be flexibly to adapt to the installation environment.
Easy Kitting will also save your time for installation.
High security standard
- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®), FIPS 140-2 level3-certified hardware is installed.
General Information

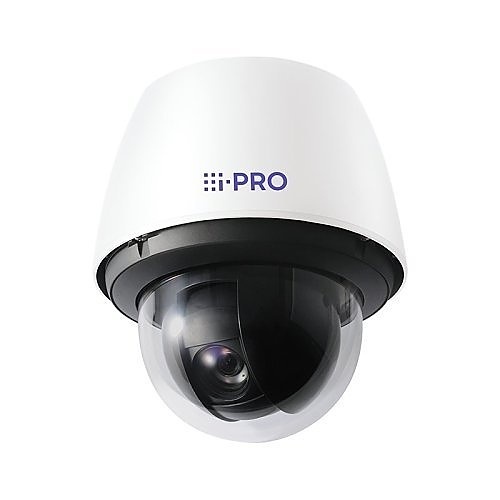

Name : i-PRO WV-S65340-Z4N Series 2MP Outdoor PTZ Network Dome Camera, White , i-PRO
Category : PTZ Security Cameras
UPC Code : 195514000827
Specifications
General Information
ADI Part Number : PA-S65340Z4N
Brand Name : i-PRO
Manufacturer Part Number : WV-S65340-Z4N
Product Series : S Series
Technical Information
Effective Camera Resolution : 2MP
Field of View : [16 : 9 mode] Horizontal : 2.1° (TELE) - 65° (WIDE), Vertical : 1.2° (TELE) - 39° (WIDE) [ 4 : 3 mode] Horizontal : 1.6° (TELE) - 51° (WIDE), Vertical : 1.2° (TELE) - 39° (WIDE)
Lens Type : Varifocal
Maximum Focal Length (mm) : 170
Maximum Frame Rate : 60 fps
Minimum Focal Length : 4.25 mm
Optical Zoom : 40x
Display & Graphics
Effective Camera Resolution (Pixel) : 2000000
Maximum Video Resolution : 2048 x 1536
Environmental Conditions
Maximum Operating Temperature : 140°F (60°C)
Minimum Operating Temperature : -58°F (-50°C)
Lens
Focal Length : 4.25-170 mm
Maximum Focal Length : 170 mm
Physical Characteristics
Color : White
Durability : Corrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Waterproof
Form Factor : Dome
Height : 10.9"
Height (mm) : 278
Weight (Approximate) : 9.48 lb
Power Description
Input Voltage : 24V AC, 54V DC
Input Voltage (V AC) : 24
Input Voltage (V DC) : 54
Product Information
Diameter : 9"
Mount Type : Bracket Mount, Ceiling Mount, Corner Mount, Gooseneck Mount, Pole Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 4.25
Video
Maximum Frame Rate (fps) : 60
Miscellaneous
Features : Audio Compression, Audio Detection, Auto Gain Control, Back Light Compensation (BLC), Face Detection, Highlight Compensation (HLC), Human Detection, Microphone In, SD Card Local Storage, Vehicle Detection
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Ingress Protection Rating : IP66, IP67
