DITEK D200M-120/2401 Modular Surge Protective Device, 200kA/Phase, Protects 120/240VAC Split Phase Panels
D200M-120/2401|DK-200M1201
DITEK D200M-120/2401 Modular Surge Protective Device, 200kA/Phase, Protects 120/240VAC Split Phase Panels
D200M-120/2401|DK-200M1201
DITEK
DITEK D200M-120/2401 Modular Surge Protective Device, 200kA/Phase, Protects 120/240VAC Split Phase Panels
D200M-120/2401 | DK-200M1201
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

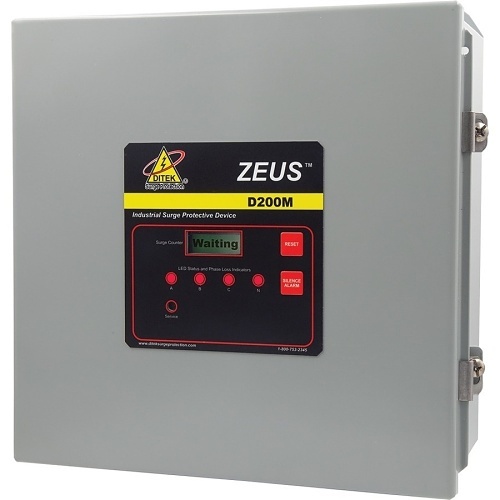

DITEK's D200M industrial surge protectors are designed to meet new construction bid/spec requirements for facility-wide protection. Each model provides a high surge current rating to ensure long service life, and includes service assurance features to support proactive operational management. The D200M-120/2401 protects 120/240VAC split phase panels.
- 200,000 Amps/phase surge current rating, 100,000 Amps/mode, ensures long service life
- Visual LED end of life and phase loss indicators
- Audible alarm with silence button
- Form C dry contacts for remote monitoring
- EMI/RFI noise filtering
- Replaceable SPD module
Main Features
General Information
Name:DITEK D200M-120/2401 Modular Surge Protective Device, 200kA/Phase, Protects 120/240VAC Split Phase Panels
Category:DITEK, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code:782980520463
Country of Origin:Mexico. Country of origin is subject to change.
Specifications
ADI Part Number DK-200M1201 Brand Name DITEK Manufacturer DITEK Corporation Manufacturer Part Number D200M-120/2401 Product Model D200M-120/2401 Product Name D200M-120/2401 Surge Suppressor/Protector Product Series D200M Product Type Surge Suppressor/Protector
Output Voltage 120V AC, 240V AC
NDAA Compliant Yes TAA Compliant Yes
Receptacles Hardwired
Color Green, Red, Yellow Height 6.3" Weight 23lb Width 13"
Limited Warranty 10-Year
Country of Origin MX Environmental Certification RoHS Environmentally Friendly Yes
